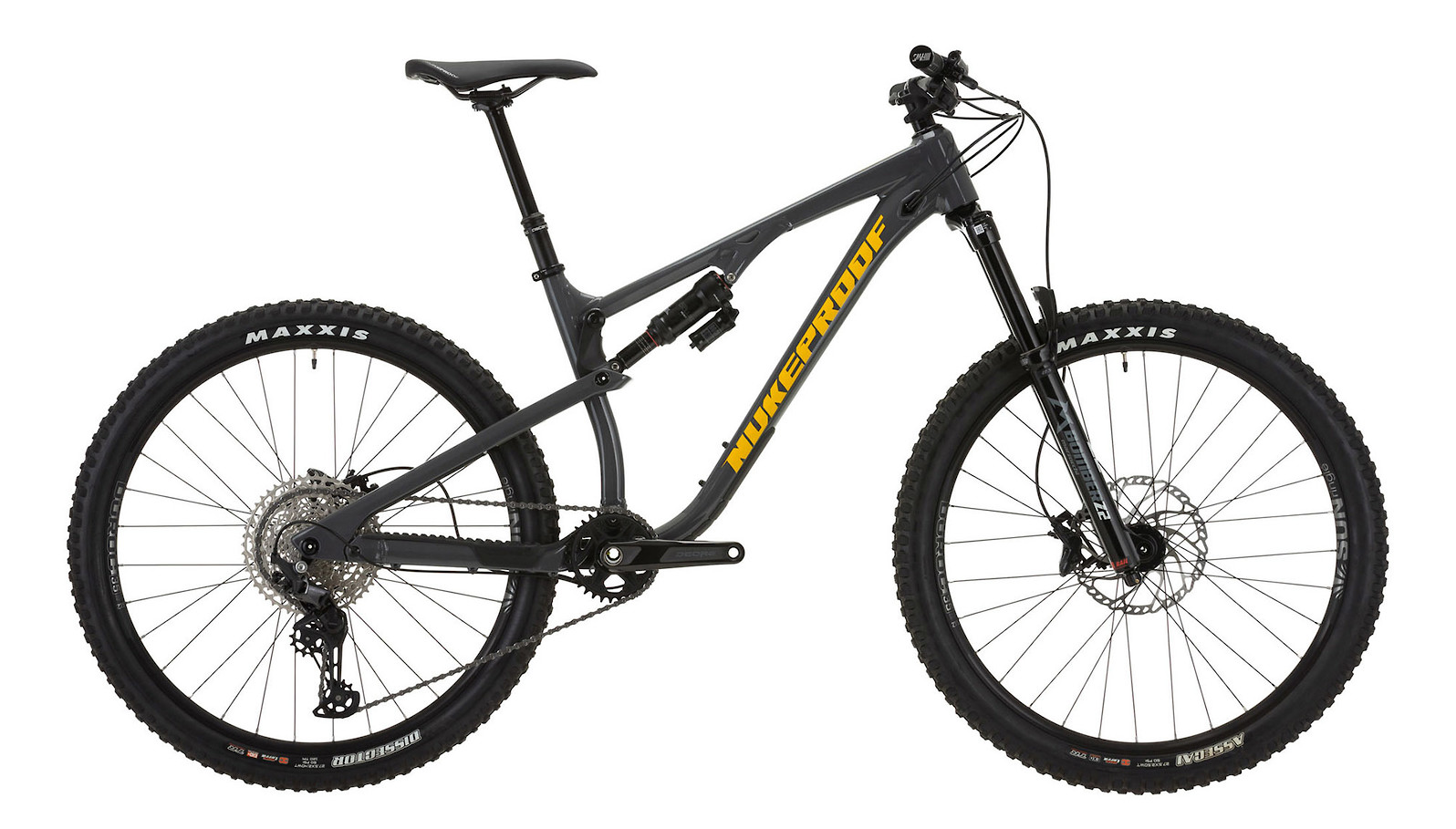

2022 Nukeproof Reactor 275 Alloy Comp Bike

(discontinued)

Discontinued

Where To Buy
	Free shipping on orders over $50 (continental U.S. only). International shipping available. Some exclusions apply.	Browse available Bikes
	Free U.S. shipping on everything. International shipping available. Some exclusions apply.	Browse available Bikes
	Free shipping on orders over $50 (contiguous U.S. only). International shipping available. Some exclusions apply.	Browse available Bikes
	Free shipping on orders over $69 (continental U.S. only). International shipping available. Some exclusions apply.	Browse available Bikes

Specifications

Product

Nukeproof Reactor 275 Alloy Comp Bike

Model Year

2022

Intended Use

Trail

Enduro / All-Mountain

Rider

Unisex

Sizes and Geometry

SM (Trail, Rail)

MD (Trail, Rail)

LG (Trail, Rail)

XL (Trail, Rail)

View Full Geometry

Size	SM (Trail, Rail)	MD (Trail, Rail)	LG (Trail, Rail)	XL (Trail, Rail)
Top Tube Length	580mm	610mm	640mm	675mm
Head Tube Angle	66.0°, 65.5°	66.0°, 65.5°	66.0°, 65.5°	66.0°, 65.5°
Head Tube Length	110mm	115mm	120mm	125mm
Seat Tube Angle	75.5°, 75.0°	75.5°, 75.0°	75.5°, 75.0°	75.5°, 75.0°
Seat Tube Length	381mm	420mm	458mm	508mm
Bottom Bracket Height	336mm (18mm drop), 330mm (24mm drop)	336mm (18mm drop), 330mm (24mm drop)	336mm (18mm drop), 330mm (24mm drop)	336mm (18mm drop), 330mm (24mm drop)
Chainstay Length	430mm	430mm	430mm	430mm
Wheelbase	1150mm	1181mm	1212mm	1247mm
Standover	723mm	721mm	722mm	725mm
Reach	425.0mm	454.0mm	482.5mm	516.0mm
Stack	600.0mm	605.0mm	609.0mm	613.5mm
Additional Info	All specifications listed are with 150mm travel fork with 46mm offset; geometry adjustable between "Trail" and "Rail" modes via flip chip at rear shock mount. Standover values given for "Trail" position.

Sizes Additional Info

All specifications listed are with 150mm travel fork with 46mm offset; geometry adjustable between "Trail" and "Rail" modes via flip chip at rear shock mount. Standover values given for "Trail" position.

View Full Geometry

Size	SM (Trail, Rail)	MD (Trail, Rail)	LG (Trail, Rail)	XL (Trail, Rail)
Top Tube Length	580mm	610mm	640mm	675mm
Head Tube Angle	66.0°, 65.5°	66.0°, 65.5°	66.0°, 65.5°	66.0°, 65.5°
Head Tube Length	110mm	115mm	120mm	125mm
Seat Tube Angle	75.5°, 75.0°	75.5°, 75.0°	75.5°, 75.0°	75.5°, 75.0°
Seat Tube Length	381mm	420mm	458mm	508mm
Bottom Bracket Height	336mm (18mm drop), 330mm (24mm drop)	336mm (18mm drop), 330mm (24mm drop)	336mm (18mm drop), 330mm (24mm drop)	336mm (18mm drop), 330mm (24mm drop)
Chainstay Length	430mm	430mm	430mm	430mm
Wheelbase	1150mm	1181mm	1212mm	1247mm
Standover	723mm	721mm	722mm	725mm
Reach	425.0mm	454.0mm	482.5mm	516.0mm
Stack	600.0mm	605.0mm	609.0mm	613.5mm
Additional Info	All specifications listed are with 150mm travel fork with 46mm offset; geometry adjustable between "Trail" and "Rail" modes via flip chip at rear shock mount. Standover values given for "Trail" position.

Wheel Size

27.5" (650b)

Frame Material

Aluminum

Frame Material Details

Custom triple-butted hydroformed aluminum tubes, UD woven carbon fiber seatstays; 3D contoured frame protection for down tube, seatstays, and chainstays

Rear Travel

140mm

Rear Shock

RockShox Super Deluxe Select R, custom tune, 210mm x 55mm

Fork

Marzocchi Bomber Z2, RAIL damper, 44mm offset

Fork Travel

150mm

Head Tube Diameter

Tapered, 1.125" top, 1.5" bottom

Headset

Nukeproof, 44-56 IITS

Handlebar

Nukeproof Neutron V2, 25mm rise
Width: 780mm (SM, MD), 800mm (LG, XL)

Stem

Nukeproof Neutron AM, 45mm length

Grips

Nukeproof Sam Hill Signature

Brakes

Shimano Deore M6120, 4-piston, 203mm front rotor, 180mm rear rotor

Brake Levers

Shimano Deore M6120

Drivetrain

Shifters

Shimano Deore M6100, 12-speed, RAPIDFIRE PLUS, I-SPEC EV bracket

Front Derailleur

None

Rear Derailleur

Shimano Deore M6100, 12-speed, SGS cage, SHADOW RD+

ISCG Tabs

ISCG05

Chainguide

None

Cranks

Race Face Ride, 170mm length

Chainrings

Race Face Ride, 32 tooth

Bottom Bracket

Race Face, 73mm English/BSA threaded

Pedals

None

Chain

Shimano Deore M6100, 12-speed

Cassette

Shimano Deore M6100, 12-speed, 10-51 tooth, HYPERGLIDE+

Rims

SUNRinglé Düroc 35 Comp wheelset

Hubs

SUNRinglé Düroc 35 Comp wheelset, 110x15mm Boost front, 148x12mm Boost rear with MICRO SPLINE driver

Spokes

SUNRinglé Düroc 35 Comp wheelset

Tires

Front: Maxxis Assegai, 3C MaxxTerra, EXO+, TR, 27.5” x 2.5" WT
Rear: Maxxis Dissector, 3C MaxxTerra, EXO+, TR, 27.5” x 2.4" WT

Saddle

Nukeproof

Seatpost

Brand-X Ascend dropper
Drop: 125mm (SM), 150mm (MD), 170mm (LG), 200mm (XL)

Seatpost Diameter

31.6mm

Seatpost Clamp

Single bolt, 34.9mm

Rear Dropout / Hub Dimensions

148x12mm Boost

Max. Tire Size

27.5" x 2.6"

Bottle Cage Mounts

One inside front triangle

Colors

Bullet Grey

Warranty

5 years frame, 2 years Nukeproof components, 1 year Nukeproof protection

Weight

32 lb 11.5 oz (14,840 g)

Miscellaneous

• Swinglink driven 4-bar Horst link rear suspension design
• Geometry adjustable between "Trail" and "Rail" modes via flip chip at rear shock mount
• Internal cable routing
• Weight given for size MD set up tubeless
• Frame weight: 3770g/8.3lbs (size MD)
• UK price: 3000 GBP
• European price: 3800 EUR

Price

$4,000.00
