2022 Marin Rift Zone 26 Bike

(discontinued)

Discontinued

c70 photo 940456.jpg?VersionId=8QoUrLrw0mMjE8Juyk2KuUQFv


Free shipping on orders over $50 (continental U.S. only). International shipping available. Some exclusions apply.	Free shipping on orders over $50 (continental U.S. only). International shipping available. Some exclusions apply. $1,699.00	Buy
Marin Bikes \| Rift Zone 26 Bike Teal Black	Marin Bikes \| Rift Zone 26 Bike Teal Black $1,699.00	Buy
Marin Bikes \| Rift Zone 1 27.5 Bike 2024 \| Charcoal \| Xl	Marin Bikes \| Rift Zone 1 27.5 Bike 2024 \| Charcoal \| Xl $1,189.30	Buy
Marin Bikes \| Rift Zone 1 29 Bike Green Grey M	Marin Bikes \| Rift Zone 1 29 Bike Green Grey M $1,799.00	Buy
Marin Bikes \| Rift Zone 1 27.5 Bike \| Pink Coral \| M	Marin Bikes \| Rift Zone 1 27.5 Bike \| Pink Coral \| M $1,799.00	Buy
Marin Bikes \| Rift Zone 2 29 Bike Grey Blue L	Marin Bikes \| Rift Zone 2 29 Bike Grey Blue L $2,299.00	Buy
Marin Bikes \| Rift Zone Xr 29 Bike 2024 Champ Brown M	Marin Bikes \| Rift Zone Xr 29 Bike 2024 Champ Brown M $2,729.30	Buy
Free shipping on orders over $50 (continental U.S. only). International shipping available. Some exclusions apply.	Browse available Bikes

Specifications

Product

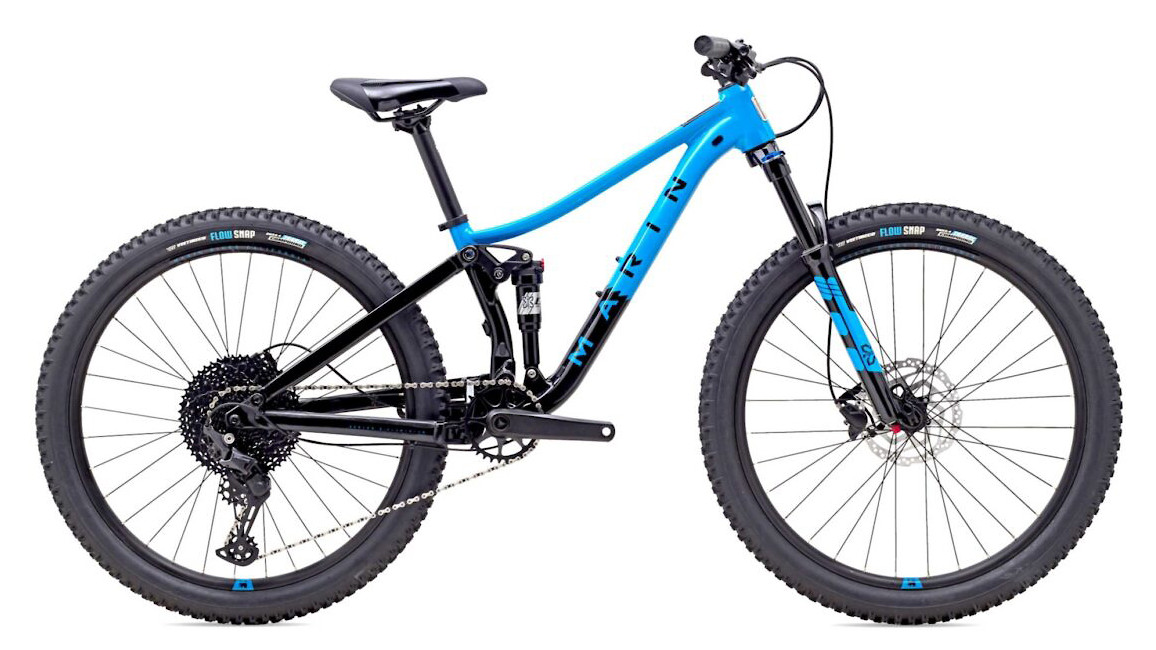

Marin Rift Zone 26 Bike

Model Year

2022

Riding Type

Cross Country

Trail

Rider

Kids

Sizes and Geometry

One Size

Size	One Size
Top Tube Length	536mm
Head Tube Angle	67.5°
Head Tube Length	105mm
Seat Tube Angle	69°
Seat Tube Length	335mm
Bottom Bracket Height	330.4mm (10mm drop)
Chainstay Length	428.5mm
Wheelbase	1018mm
Standover	621mm
Reach	380mm
Stack	536.24mm

Wheel Size

26"

Frame Material

Aluminum

Frame Material Details

Series 3 6061 aluminum

Rear Travel

120mm

Rear Shock

X-Fusion O2 Pro R, air spring, custom tune, 190mm x 51mm

Fork

X-Fusion Velvet RLC, air spring, compression adjust, rebound adjust, 42mm offset

Fork Travel

120mm

Head Tube Diameter

Tapered, 1.125" top, 1.5" bottom

Headset

FSA No.57E, semi-sealed cartridge bearings

Handlebar

Marin Mini-Riser, 6061 double-butted aluminum, 720mm width, 15mm rise, 4° upsweep, 9° backsweep

Stem

Marin 3D forged alloy, 35mm

Grips

Marin dual density

Brakes

Shimano MT201, 2-piston, 180mm front rotor, 160mm rear rotor

Brake Levers

Shimano MT201

Drivetrain

Shifters

Shimano Deore M5100, 11-speed

Front Derailleur

None

Rear Derailleur

Shimano Deore M5100, 11-speed, SGS cage

ISCG Tabs

None

Chainguide

None

Cranks

Marin forged alloy, 170mm length

Chainrings

Marin steel, 32 tooth, narrow/wide

Bottom Bracket

External, sealed cartridge bearings, 73mm English/BSA threaded

Pedals

None

Chain

KMC X-11, 11-speed

Cassette

SunRace, 11-speed, 11-51 tooth

Rims

Marin, double wall aluminum, 27mm inner width, pinned joint, tubeless compatible, 32 hole

Hubs

Forged alloy, 100x15mm front, 135mm quick release rear with HG driver

Spokes

14g stainless steel

Tires

VEE Tire Co. Flow Snap, Tackee compound, wire bead, 26" x 2.4"

Saddle

Marin Speed Concept

Seatpost

Marin alloy

Seatpost Diameter

30.9mm

Seatpost Clamp

Quick release

Rear Dropout / Hub Dimensions

135mm quick release, upgradable to 142x12mm thru-axle

Max. Tire Size

Bottle Cage Mounts

One inside front triangle

Colors

Gloss Cyan/Black

Warranty

5 years frame; 1 year components, paint and decals

Weight

N/A

Miscellaneous

• MultiTrac single pivot rear suspension design
• Internal cable routing with internal dropper seatpost routing

Price

$1,899.00

More Info

marinbikes.com
