2019 Giant Trance 3 Bike

Views:

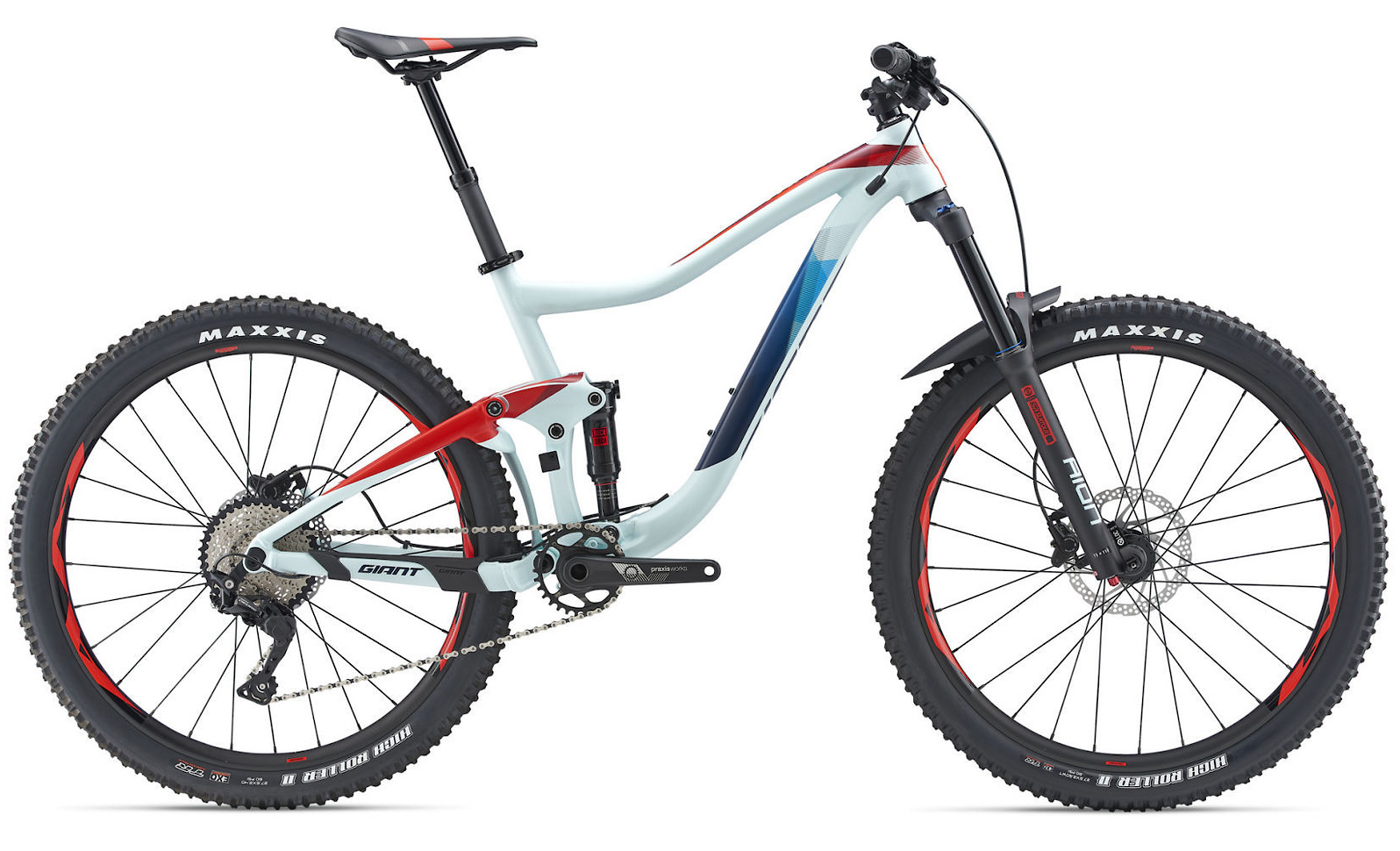

2019 Giant Trance 3
Create New Tag

Compare to other Bikes

Need more info? View our Enduro / All-Mountain Mountain Bikes or Trail Mountain Bikes buyer's guides.

Specifications

Product Giant Trance 3 Bike
Model Year 2019
Riding Type Enduro / All-Mountain, Trail
Rider Unisex
Sizes and Geometry
S, M, L, XL View Geometry
Size S M L XL
Top Tube Length 580mm 610mm 630mm 655mm
Head Tube Angle 67.0° 67.0° 67.0° 67.0°
Head Tube Length 100mm 105mm 130mm 145mm
Seat Tube Angle 73.5° 73.5° 73.5° 73.5°
Seat Tube Length 380mm 431mm 482mm 507mm
Bottom Bracket Height 15mm drop 15mm drop 15mm drop 15mm drop
Chainstay Length 435mm 435mm 435mm 435mm
Wheelbase 1129mm 1160mm 1183mm 1209mm
Standover 701mm 723mm 768mm 788mm
Reach 406mm 435mm 448mm 469mm
Stack 587mm 591mm 614mm 628mm
Wheel Size 27.5" (650b)
Frame Material Aluminum
Frame Material Details ALUXX SL 6011 aluminum frame, Advanced Forged composite rocker arm
Rear Travel 140mm
Rear Shock RockShox Deluxe R, trunnion mount
Fork Suntour AION 35 RC DS, 15x110mm Boost axle, tapered steerer
Fork Travel 150mm
Head Tube Diameter Tapered, 1.125" top, 1.5" bottom
Headset
Handlebar Giant Connect Trail, 780mm width, 31.8mm clamp
Stem Giant Connect, 31.8mm clamp, 50mm length (S, M, L), 60mm length (XL)
Grips
Brakes Shimano BR-MT400, 180mm rotors
Brake Levers Shimano BL-MT400
Drivetrain 1x
Shifters Shimano Deore, 10-speed
Front Derailleur N/A
Rear Derailleur Shimano Deore, Shadow+, 10-speed
ISCG Tabs ISCG05
Chainguide N/A
Cranks Praxis Cadet, Boost, 170mm length (S), 175mm length (M, L, XL)
Chainrings Praxis Cadet, 30 tooth
Bottom Bracket Praxis BB-90 PressFit
Pedals N/A
Chain KMC X10-1, 10-speed
Cassette Shimano Deore CS-HG500-10, 10-speed, 11-42 tooth
Rims Giant AM 27.5, tubeless ready, sleeve-joint rim, 30mm inner width
Hubs Giant Tracker Performance, sealed bearings, Boost
Spokes Sapim
Tires Maxxis High Roller II, 60 tpi, EXO, TR, tubeless, 27.5" x 2.5" WT (front), 27.5" x 2.4" (rear)
Saddle Giant Contact (neutral position)
Seatpost Giant Contact Switch dropper
Seatpost Diameter 30.9mm
Seatpost Clamp Standard single bolt
Rear Dropout / Hub Dimensions 148x12mm Boost
Max. Tire Size
Bottle Cage Mounts Yes (single)

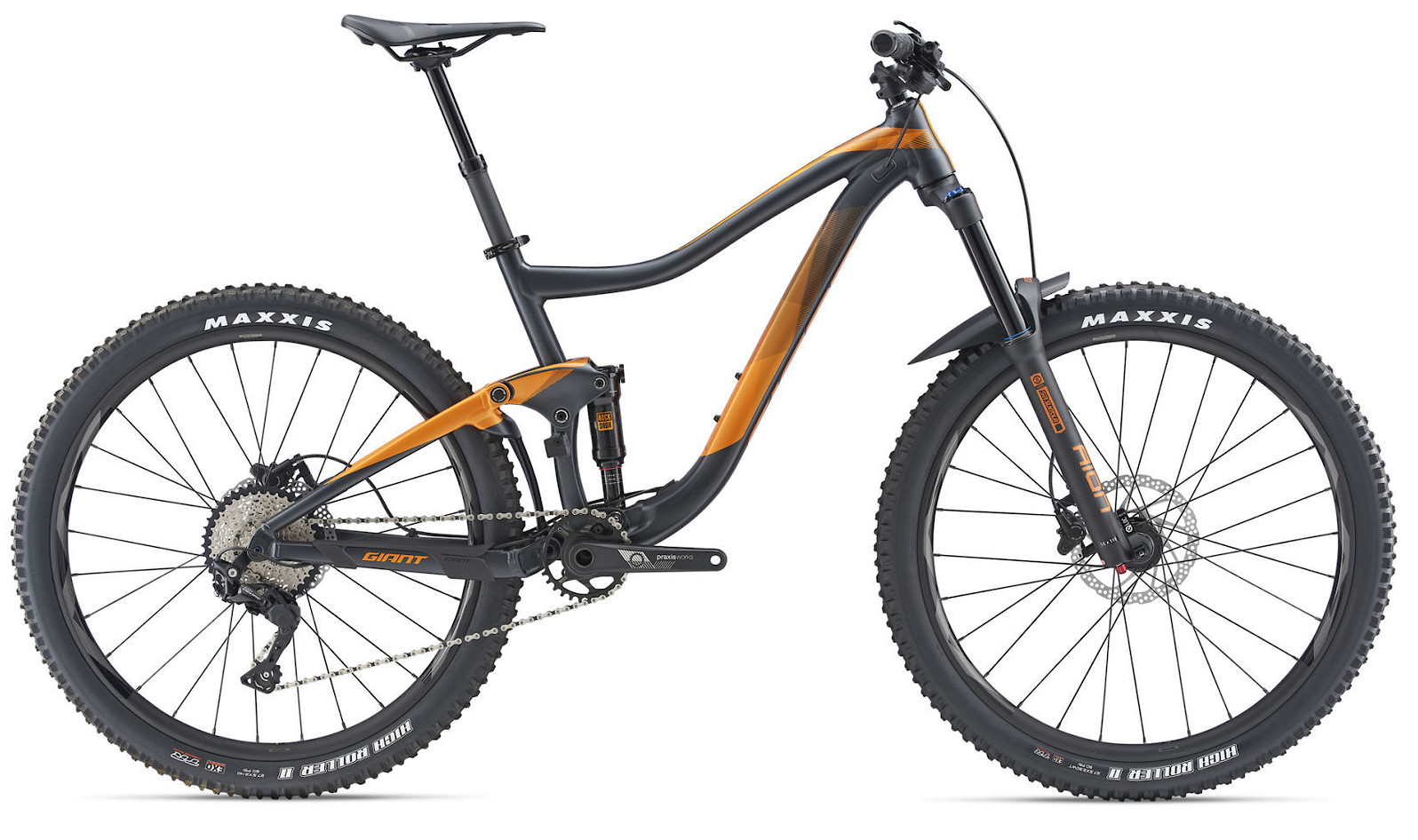

Colors Metallic Black / Metallic Orange, Glacier Green/ Pure Red / Navy Blue
Warranty Lifetime frame, 1 year paint and components
Weight N/A
Miscellaneous Maestro suspension design
Price $1,950
