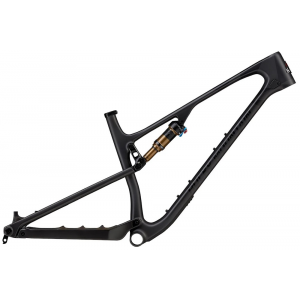

Rocky Mountain Element Carbon Frame

c70 photo 302760.jpg?VersionId= 8nC5SzPuizA


Free shipping on orders over $50 (continental U.S. only). International shipping available. Some exclusions apply.	Free shipping on orders over $50 (continental U.S. only). International shipping available. Some exclusions apply. $3,499.00	Buy
Rocky Mountain \| Element Carbon Frameset 2023 \| Black \| L	Rocky Mountain \| Element Carbon Frameset 2023 \| Black \| L $3,499.00	Buy
Rocky Mountain \| Element Carbon 70 Bike 2023 Black L	Rocky Mountain \| Element Carbon 70 Bike 2023 Black L $6,999.00	Buy
Rocky Mountain \| Element Carbon 50 Bike 2023 Black L	Rocky Mountain \| Element Carbon 50 Bike 2023 Black L $4,769.00	Buy
Free shipping on orders over $50 (continental U.S. only). International shipping available. Some exclusions apply.	No match. Browse other Frames

Specifications

Product

Rocky Mountain Element Carbon Frame

Riding Type

Cross Country

Trail

Rider

Unisex

Sizes and Geometry

XS (slack, steep)

SM (slack, steep)

MD (slack, steep)

LG (slack, steep)

XL (slack, steep)

Size	XS (slack, steep)	SM (slack, steep)	MD (slack, steep)	LG (slack, steep)	XL (slack, steep)
Top Tube Length	542mm, 541mm	577mm, 575mm	605mm, 603mm	632mm, 630mm	664mm, 662mm
Head Tube Angle	64.7°, 65.5°	65.0°, 65.8°	65.0°, 65.8°	65.0°, 65.8°	65.0°, 65.8°
Head Tube Length	90mm	105mm	115mm	125mm	135mm
Seat Tube Angle	75.7°, 76.5°	76.0°, 76.8°	76.0°, 76.8°	76.0°, 76.8°	76.0°, 76.8°
Seat Tube Length	355mm	380mm	420mm	445mm	480mm
Bottom Bracket Height	28mm drop, 19mm drop	47mm drop, 36mm drop	47mm drop, 36mm drop	47mm drop, 36mm drop	47mm drop, 36mm drop
Chainstay Length	426mm, 425mm	436mm, 435mm	436mm, 435mm	436mm, 435mm	436mm, 435mm
Wheelbase	1127mm	1173mm	1202mm	1231mm	1265mm
Standover	769mm, 772mm	810mm, 813mm	808mm, 811mm	806mm, 810mm	804mm, 808mm
Reach	397mm, 405mm	425mm, 433mm	450mm, 458mm	475mm, 483mm	505mm, 513mm
Stack	561mm, 566mm	606mm, 610mm	615mm, 619mm	624mm, 628mm	633mm, 637mm
Additional Info	XS has 27.5" wheels; SM-XL have 29" wheels. All specifications listed are with 130mm travel fork. Geometry adjustable via RIDE-4 flip chip at rear shock mount. Measurements with 2 values represent RIDE-4 geometry's Slackest and Steepest configurations; see Rocky Mountain's website for intermediate RIDE-4 geometry values.

Wheel Size

27.5" (650b)

29"

Frame Material

Carbon Fiber

Frame Material Details

SMOOTHWALL carbon front and rear triangles; molded chainstay, seatstay, and down tube protection

Rear Travel

120mm

Rear Shock

FOX FLOAT DPS Factory, Kashima coating, size-specific tune, 190mm x 45mm

Head Tube Diameter

Tapered, 1.125" top, 1.5" bottom

Bottom Bracket

92mm press-fit

Rear Dropout / Hub Dimensions

148x12mm Boost

Front Derailleur Size

Not compatible (1x-specific)

Seatpost Diameter

30.9mm

Max Tire Size

ISCG Tabs

None

Bottle Cage Mounts

29: two inside front triangle
27.5": one inside front triangle, plus accessory mounts on down tube

Colors

Carbon/Black

Warranty

5 years frame; 1 year paint, decals, and frame hardware

Weight

5 lb 5.7 oz (2,430 g)

Miscellaneous

• 2022-2023 version
• XS has 27.5" wheels; SM-XL have 29" wheels
• Geometry and suspension rate adjustable via RIDE-4 flip chip at rear shock mount
• Internal cable routing

Price

$3,499.00
