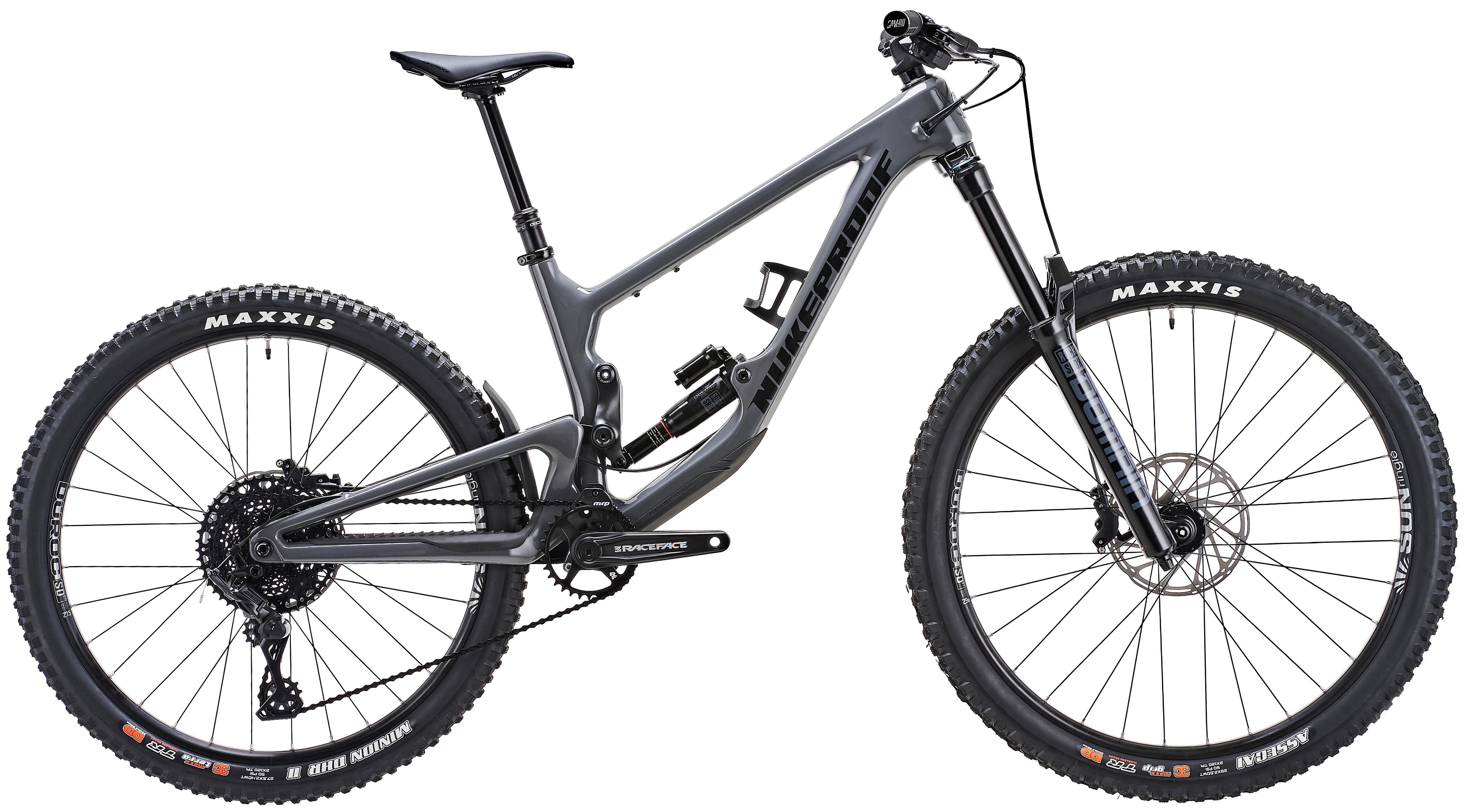

Nukeproof Giga 297 Carbon Frame

Views:
Nukeproof Giga 297 Carbon
 Nukeproof Giga 297 Carbon Frame  Nukeproof Giga 297 Carbon Frame  Nukeproof Giga 297 Carbon Frame  Nukeproof Giga 297 Carbon Frame  Nukeproof Giga 297 Carbon Frame
Create New Tag

Compare to other Frames

Need more info? View our Freeride / Bike Park Mountain Bike Frames buyer's guide.

Specifications

Product Nukeproof Giga 297 Carbon Frame
Riding Type Freeride / Bike Park
Rider Unisex
Sizes and Geometry
SM, MD, LG View Geometry
Size SM MD LG
Top Tube Length 565.11mm 590.11mm 609.18mm
Head Tube Angle 63.5° 63.5° 63.5°
Head Tube Length 100mm 100mm 110mm
Seat Tube Angle 77.75° 77.75° 78.00°
Seat Tube Length 380mm 410mm 440mm
Bottom Bracket Height 350mm 350mm 350mm
Chainstay Length 435mm 435mm 435mm
Wheelbase 1206.28mm 1231.28mm 1255.66mm
Standover 702.58mm 710.09mm 729.88mm
Reach 430mm 455mm 475mm
Stack 622.26mm 622.26mm 631.25mm
* Additional Info Mixed ("Mullet") wheels: 29" front, 27.5" rear. All specifications listed are with 180mm travel fork with 42mm offset. Bottom bracket drop: 25mm (front), 10mm (rear).
Wheel Size 27.5" (650b), 29", Other (Mullet)
Frame Material Carbon Fiber
Frame Material Details T700/800 monocoque UD carbon fiber front and rear triangles; 3D contoured rubber frame protection for down tube, seatstays, and chainstays
Rear Travel 180mm
Rear Shock FOX FLOAT X2 Factory, EVOL, Kashima coating, 2-position lever, custom tune, trunnion mount, 205mm x 60mm
Head Tube Diameter Tapered, 1.125" top, 1.5" bottom
Bottom Bracket 73mm English/BSA threaded
Rear Dropout / Hub Dimensions 148x12mm Boost
Front Derailleur Size N/A (1x-specific)
Seatpost Diameter 31.6mm
Max Tire Size 27.5" x 2.6"
ISCG Tabs ISCG05
Bottle Cage Mounts One inside front triangle, plus accessory mounts under top tube
Colors Yellow
Warranty 5 years frame, 2 years Nukeproof components, 1 year Nukeproof protection
Weight
Miscellaneous • 2021 version
• Single pivot rear suspension design
• Mixed ("Mullet") wheels: 29" front, 27.5" rear
• 2-stage main pivot flip chip alters rear suspension progressivity (25.5% or 29.0% progression settings)
• Designed for 180mm travel forks with 42mm offset
• Internally-piped cable routing
• SRAM UDH (Universal Derailleur Hanger)
• 200mm direct post rear brake mounts
• Includes factory-fitted clear paint protection kit
• Includes integrated rear mud guard
• Includes headset: Nukeproof, 44-56 IITS
• UK price: 2599.99 GBP
Price $2,600
More Info Nukeproof Launches Mega and Giga 297 MX Options (press release)
