2022 Specialized Turbo Kenevo SL Comp E-Bike

Views:

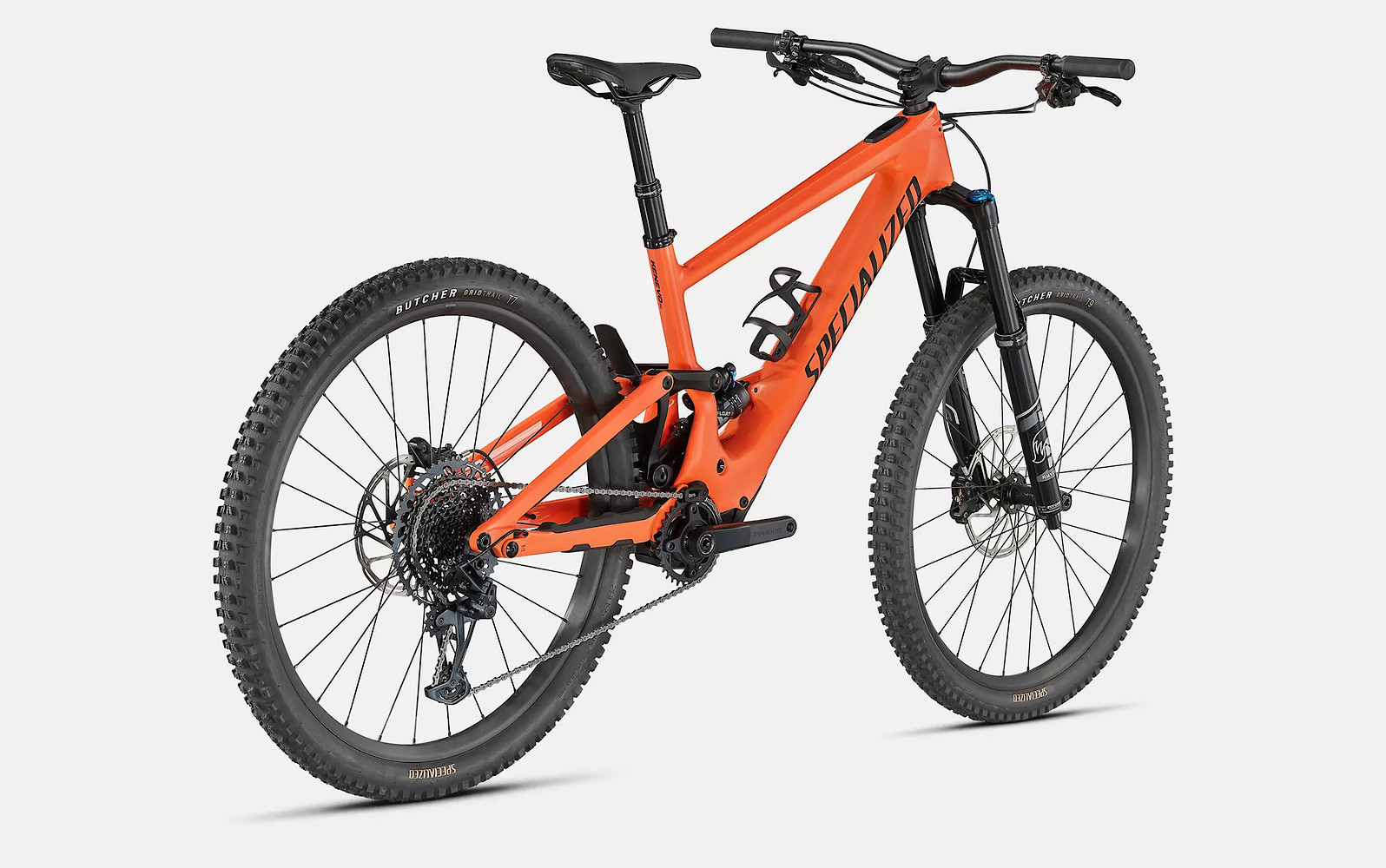

2022 Specialized Turbo Kenevo SL (Gloss Blaze/Black)
2022 Specialized Turbo Kenevo SL Comp E-Bike 2022 Specialized Turbo Kenevo SL Comp E-Bike 2022 Specialized Turbo Kenevo SL Comp E-Bike 2022 Specialized Turbo Kenevo SL Comp E-Bike 2022 Specialized Turbo Kenevo SL Comp E-Bike 2022 Specialized Turbo Kenevo SL Comp E-Bike
Create New Tag

Compare to other E-Bikes

Specifications

Product Specialized Turbo Kenevo SL Comp E-Bike
Model Year 2022
Riding Type Enduro / All-Mountain, Freeride / Bike Park
Rider Unisex
Sizes and Geometry
S2, S3, S4, S5 View Geometry
Size S2 S3 S4 S5
Top Tube Length
Head Tube Angle 63.5° 63.5° 63.5° 63.5°
Head Tube Length 105mm 115mm 125mm 135mm
Seat Tube Angle 76° 76° 76° 76°
Seat Tube Length 400mm 420mm 440mm 465mm
Bottom Bracket Height 350mm (25mm drop) 350mm (25mm drop) 350mm (25mm drop) 350mm (25mm drop)
Chainstay Length 447mm 447mm 447mm 447mm
Wheelbase 1228mm 1258mm 1287mm 1316mm
Standover 779mm 779mm 792mm 802mm
Reach 435mm 460mm 485mm 510mm
Stack 618mm 626mm 635mm 644mm
* Additional Info Head Tube Angle adjustable via headset cups (63° - 65.5°). Bottom Bracket Height adjusable via flip chip at Horst pivot (+/- 7mm).
Wheel Size 29"
E-Bike Class Class 1: Pedal Assist (Pedelecs)
Motor Specialized SL 1.1, 35Nm max torque, 250W
Battery Specialized SL1-320, fully integrated
Optional: Specialized SL1-160 external range-extender battery with cable, 160 Wh
Battery Capacity 320 Wh
Display/Remote Specialized MasterMind TCU, ANT+/Bluetooth, with handlebar remote
Modes Eco, Trail, Turbo, Walk Assist
Max Speed with Assist 20 mph (32 km/h)
Frame Material Carbon Fiber
Frame Material Details FACT 11m full carbon; molded chainstay, seatstay, and down tube protection
Rear Travel 170mm
Rear Shock FOX FLOAT X Performance, 2-position lever, low-speed compression adjust, 230mm x 62.5mm
Fork FOX FLOAT 36 Rhythm, GRIP damper, 2-position lever with Sweep Adjust, 44mm offset
Fork Travel 170mm
Head Tube Diameter
Headset
Handlebar Specialized, 6061 alloy, 800mm width, 30mm rise, 6° upsweep, 8° backsweep, 35mm clamp diameter
Stem Specialized Trail, alloy, 35mm bar clamp
Length: 40mm (S2), 50mm (S3-S5)
Grips Specialized Trail
Brakes SRAM Code R, 4-piston, 220mm front rotor, 200mm rear rotor
Brake Levers SRAM Code R
Drivetrain 1x
Shifters SRAM GX Eagle, 12-speed
Front Derailleur None
Rear Derailleur SRAM GX Eagle, 12-speed
Chainguide Upper slider
Cranks Praxis M30, forged alloy, custom offset
Length: 165mm (S2/S3), 170mm (S4/S5)
Chainrings SRAM Eagle, alloy, 32 tooth, X-SYNC, 94mm BCD
Pedals None
Chain SRAM NX Eagle, 12-speed
Cassette SRAM GX Eagle XG-1275, 12-speed, 10-52 tooth
Rims Specialized, hookless alloy, 30mm inner width, 2Bliss ready, 28 hole
Hubs Alloy, sealed cartridge bearings, 15x110mm Boost front, 12x148mm Boost rear with XD driver
Spokes DT Swiss Industry
Tires Specialized Butcher, GRID TRAIL casing, GRIPTON compound (T9 front, T7 rear), 29" x 2.3"
Saddle Specialized Bridge Comp, hollow CrMo rails
Width: 155mm (S2), 143mm (S3-S5)
Seatpost X-Fusion Manic dropper, infinite adjustability, two-bolt head, SRL LE remote lever
Drop: 125mm (S2), 150mm (S3/S4), 170mm (S5)
Seatpost Diameter 34.9mm
Seatpost Clamp Specialized, single bolt, alloy, 38.6mm
Rear Dropout / Hub Dimensions 12x148mm Boost
Max. Tire Size
Bottle Cage Mounts One inside front triangle
Colors Gloss Smoke/Dream Silver, Gloss Blaze/Black
Warranty Lifetime frame, 2 years Specialized components, 2 years or 300 charge cycles for battery
Weight
Miscellaneous • Head tube angle adjustable via headset cups (63° - 65.5°)
• Bottom bracket height adjusable via flip chip at Horst pivot (+/- 7mm)
• Internal cable routing
• Custom battery and motor management via Mission Control smartphone app
• Includes custom battery charger, 48V system with SL system charger plug
Price $9,000
More Info specialized.com
