2022 Rocky Mountain Instinct Powerplay Alloy 30 E-Bike

Views:
2022 Rocky Mountain Instinct Powerplay Alloy 30 (representation only, alternate build shown)
2022 Rocky Mountain Instinct Powerplay Alloy 30 E-Bike 2022 Rocky Mountain Instinct Powerplay Alloy 30 E-Bike 2022 Rocky Mountain Instinct Powerplay Alloy 30 E-Bike
Create New Tag

Compare to other E-Bikes

Specifications

Product Rocky Mountain Instinct Powerplay Alloy 30 E-Bike
Model Year 2022
Riding Type Trail, Enduro / All-Mountain
Rider Unisex
Sizes and Geometry
SM (Slackest, Steepest), MD (Slackest, Steepest), LG (Slackest, Steepest), XL (Slackest, Steepest) View Geometry
Size SM (Slackest, Steepest) MD (Slackest, Steepest) LG (Slackest, Steepest) XL (Slackest, Steepest)
Top Tube Length 585mm, 583mm 610mm, 608mm 638mm, 636mm 671mm, 669mm
Head Tube Angle 64.20°, 64.95° 64.20°, 64.95° 64.20°, 64.95° 64.20°, 64.95°
Head Tube Length 100mm 100mm 110mm 125mm
Seat Tube Angle 76.20°, 76.95° 76.20°, 76.95° 76.20°, 76.95° 76.20°, 76.95°
Seat Tube Length 380mm 420mm 445mm 480mm
Bottom Bracket Height 42mm drop, 32mm drop 42mm drop, 32mm drop 42mm drop, 32mm drop 42mm drop, 32mm drop
Chainstay Length 439mm, 436mm 439mm, 436mm 439mm, 436mm 439mm, 436mm
Wheelbase 1201mm, 1199mm 1226mm, 1224mm 1256mm, 1253mm 1292mm, 1290mm
Standover 819mm, 823mm 818mm, 823mm 817mm, 823mm 818mm, 823mm
Reach 432mm, 441mm 457mm, 466mm 482mm, 491mm 512mm, 520mm
Stack 624mm, 618mm 624mm, 618mm 632mm, 626mm 646mm, 639mm
* Additional Info Chainstay length adjustable via flip chip at rear dropout. Geometry and suspension rate adjustable via RIDE-4 flip chip at rear shock mount. Measurements with 2 values represent RIDE-4 geometry's Slackest and Steepest configurations; see Rocky Mountain's website for intermediate RIDE-5 geometry values.
Wheel Size 29"
E-Bike Class Class 1: Pedal Assist (Pedelecs)
Motor Dyname 4.0 Mountain Bike Drive, 250W nominal power, 880W peak power, 108Nm max torque
Battery Li-Ion, integrated, removable; compatible with second Overtimepack battery (314 Wh)
Battery Capacity 720 Wh

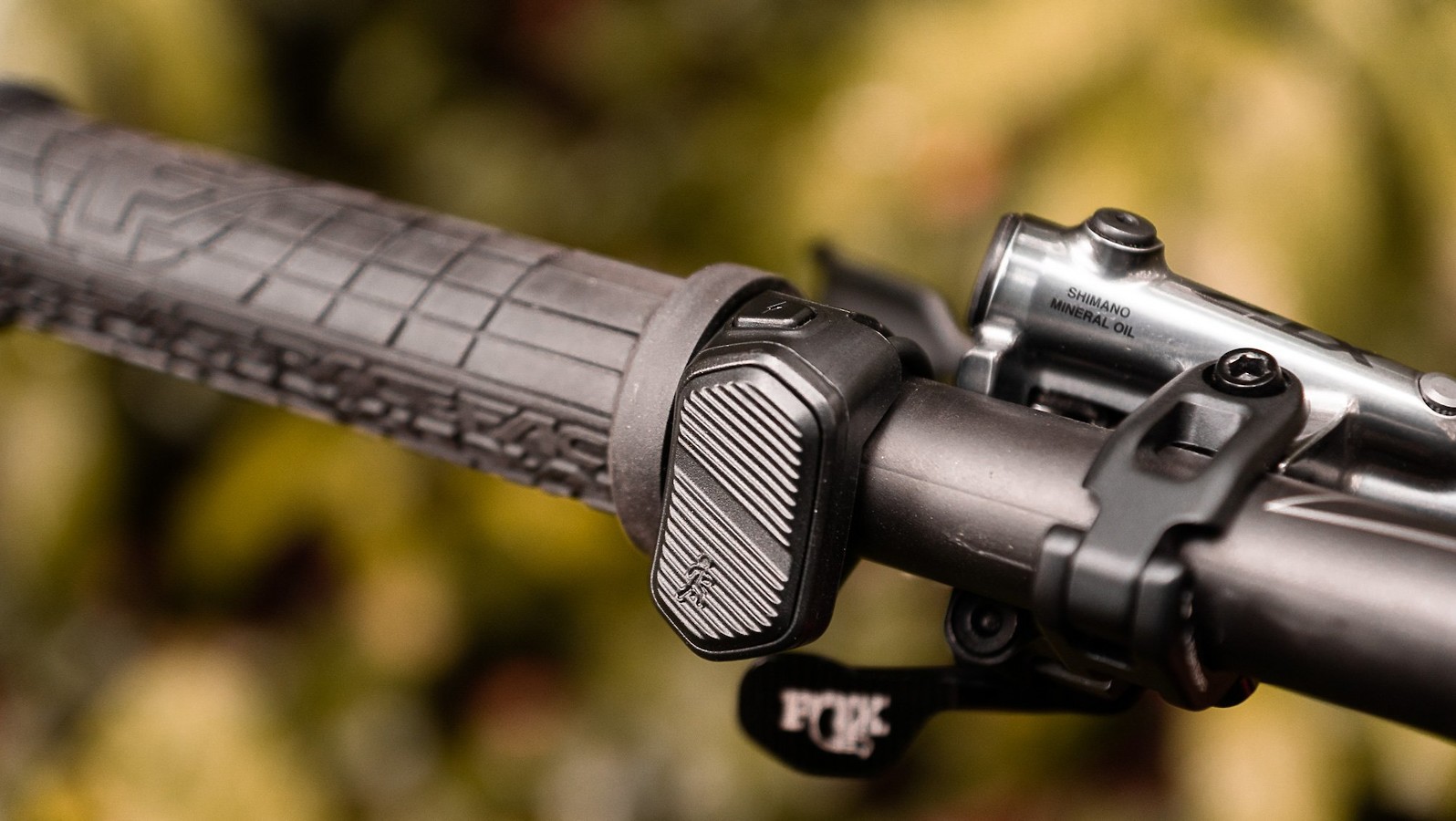

Display/Remote Rocky Mountain Jumbotron, integrated with top tube; Rocky Mountain Micro Remote
Modes Eco, Trail, Ludicrous, and Walk
Max Speed with Assist 20 mph (32 km/h)
Frame Material Aluminum
Frame Material Details FORM alloy; molded seatstay, chainstay, down tube, and shuttle guard protection; integrated fork bumper
Rear Travel 140mm
Rear Shock RockShox Deluxe Select R, size-specific tune, 210mm x 55mm
Fork RockShox 35 Gold RL, 44mm offset
Fork Travel 150mm
Head Tube Diameter Tapered, 1.125" top, 1.5" bottom
Headset FSA Orbit No.57E, sealed bearings
Handlebar Rocky Mountain AM, 780mm width, 25mm rise, 9° backsweep, 5° upsweep, 31.8mm clamp diameter
Stem Rocky Mountain AM, 40mm length, 5° rise, 31.8mm bar clamp
Grips Rocky Mountain Light, lock-on
Brakes Shimano M4120, 4-piston, resin pads, Shimano RT30 203mm rotors
Brake Levers Shimano M4120
Drivetrain 1x
Shifters Shimano Deore, 11-speed
Front Derailleur None
Rear Derailleur Shimano Deore, 11-speed
Chainguide Upper and lower pulley guides with bashguard
Cranks Race Face Ride Cinch, 24mm spindle
Length: 165mm (SM/MD), 170mm (LG/XL)
Chainrings Race Face Ride Cinch, 34 tooth
Pedals None
Chain KMC X11-1, 11-speed
Cassette Shimano Deore, 11-speed, 11-51 tooth
Rims WTB ST i30 TCS 2.0, 32 hole, tubeless ready (rim tape and valves included)
Hubs Shimano, MT410 15x110mm Boost front, MT400 12x148mm Boost rear with MICRO SPLINE driver
Spokes Stainless steel, 2.0
Tires Front: Maxxis Minion DHF, EXO, TR, 29" x 2.5" WT
Rear: Maxxis Minion DHR II, EXO, TR, 29" x 2.4" WT
Saddle WTB Volt, 142mm width
Seatpost Rocky Mountain Toonie dropper
Drop: 125mm (SM), 150mm (MD), 170mm (LG/XL)
Seatpost Diameter 30.9mm
Seatpost Clamp Single bolt, 34.9mm
Rear Dropout / Hub Dimensions 12x148mm Boost
Max. Tire Size 29" x 2.6"
Bottle Cage Mounts One inside front triangle
Colors Grey/Red
Warranty 5 years frame; 3 years electronics; 2 years battery; 1 year paint, decals, frame hardware, drive components, suspension pivots, and bushings
Weight
Miscellaneous • Mid-high pivot Smoothlink rear suspension design
• Geometry and suspension rate adjustable via RIDE-4 flip chip at rear shock mount
• Chainstay length adjustable via flip chip at rear dropout
• Internal cable routing
• Motor assist settings customizable via app
• BB89.5 press-fit bottom bracket
• Overtimepack compatible (extra 314 Wh)
• Photos are representation only, showing alternate build
Price $5,599
More Info 18.5% Lighter Dyname 4.0 Motor - 2022 Rocky Mountain Altitude and Instinct Powerplay eMTBs (press release)

Rocky Mountain Website
