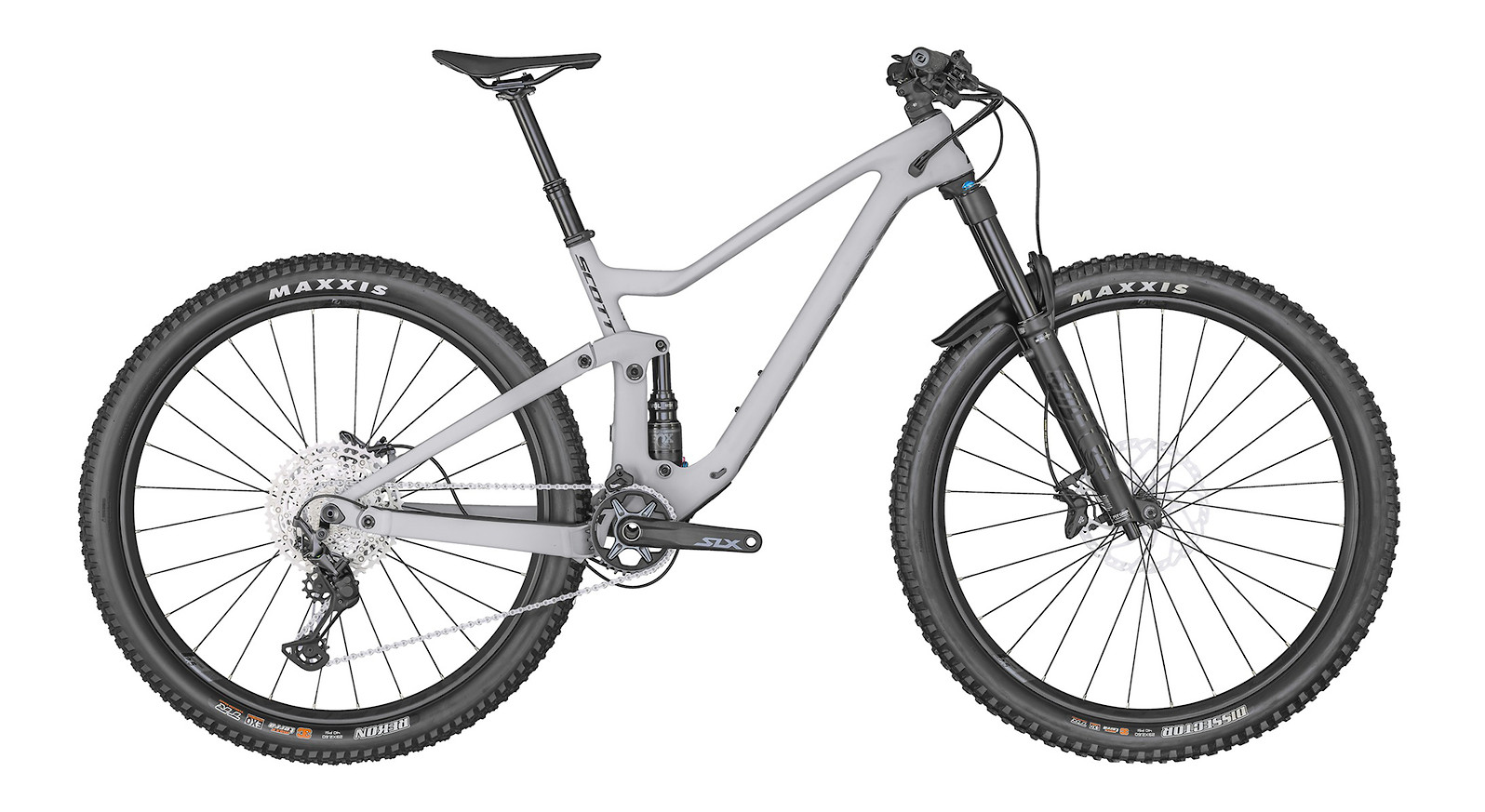

2022 Scott Genius 920 Bike

Views:
Create New Tag

Compare to other Bikes

Need more info? View our Enduro / All-Mountain Mountain Bikes buyer's guide.

Specifications

Product Scott Genius 920 Bike
Model Year 2022
Riding Type Enduro / All-Mountain
Rider Unisex
Sizes and Geometry
SM (low, high), MD (low, high), LG (low, high), XL (low, high) View Geometry
Size SM (low, high) MD (low, high) LG (low, high) XL (low, high)
Top Tube Length 569.7mm, 568.2mm 602.8mm, 601.2mm 633.4mm, 631.8mm 670.1mm, 668.4mm
Head Tube Angle 65.0°, 65.6° 65.0°, 65.6° 65.0°, 65.6° 65.0°, 65.6°
Head Tube Length 95mm 95mm 110mm 125mm
Seat Tube Angle 74.7°, 75.3° 74.7°, 75.3° 74.7°, 75.3° 74.7°, 75.3°
Seat Tube Length 410mm 440mm 480mm 520mm
Bottom Bracket Height 346.1mm (27.4mm drop), 340.0mm (20.0mm drop) 346.0mm (27.5mm drop), 340.0mm (20.0mm drop) 345.9mm (27.6mm drop), 340.0mm (20.0mm drop) 345.7mm (27.4mm drop), 340.0mm (20.0mm drop)
Chainstay Length 438mm, 436mm 438mm, 436mm 438mm, 436mm 438mm, 436mm
Wheelbase 1165.9mm, 1164.6mm 1198.9mm, 1197.6mm 1232.1mm, 1230.8mm 1271.3mm, 1270.0mm
Standover 739.6mm, 729.5mm 740.8mm, 731.3mm 758.4mm, 749.5mm 774.1mm, 756.6mm
Reach 405.9mm, 412.0mm 439.1mm, 445.0mm 466.1mm, 472.0mm 499.2mm, 505.0mm
Stack 599.7mm, 595.5mm 599.9mm, 595.5mm 613.7mm, 609.2mm 627.5mm, 622.8mm
* Additional Info Geometry adjustable via flip chip at upper shock mount
Wheel Size 29"
Frame Material Carbon Fiber
Frame Material Details HMF carbon main frame, IMP (Integrated Molding Process) Technology; 6011 SL alloy rear triangle; molded chainstay and down tube protection
Rear Travel 150mm
Rear Shock FOX FLOAT DPS NUDE T, EVOL, 3-mode adjust via Scott TwinLoc TSP (Lockout, Traction Control, Descend), rebound adjust, trunnion mount, 185mm x 55mm
Fork FOX FLOAT 36 Performance, GRIP damper, 3-mode adjust via Scott TwinLoc TSP (Lockout, Traction Control, Descend), rebound adjust, 44mm offset, includes FOX fender
Fork Travel 150mm
Head Tube Diameter Tapered, 1.125" top, 1.5" bottom
Headset Syncros Pro Press Fit E2
Handlebar Syncros Hixon 1.5, 7050 double-butted alloy, 780mm width, 12mm rise, 9° sweep, 31.8mm clamp diameter
Stem Syncros FL1.5, 2014 alloy, 6° rise, 31.8mm bar clamp
Length: 40mm (SM), 50mm length (MD/LG/XL)
Grips Syncros Pro, lock-on
Brakes Shimano Deore M6120, 4-piston, Shimano RT66 6-bolt rotors (203mm front, 180mm rear)
Brake Levers Shimano Deore M6120
Drivetrain 1x
Shifters Shimano Deore M6100, 12-speed, RAPIDFIRE PLUS, I-SPEC EV bracket
Front Derailleur None
Rear Derailleur Shimano Deore XT M8100, 12-speed, SGS cage, SHADOW RD+
ISCG Tabs None
Chainguide Scott upper slider
Cranks Shimano SLX M7100, HOLLOWTECH 2
Chainrings Shimano SLX M7100, 32 tooth
Bottom Bracket Shimano MT500, 92mm press-fit
Pedals None
Chain Shimano Deore M6100, 12-speed
Cassette Shimano Deore M6100, 12-speed, 10-51 tooth
Rims Syncros Revelstoke 2.5 wheelset, 30mm width, 28 hole, tubeless ready
Hubs Syncros Revelstoke 2.5 wheelset, 110x15mm Boost front, 148x12mm Boost rear with MICRO SPLINE driver
Spokes Syncros Revelstoke 2.5 wheelset
Tires Front: Maxxis Dissector, 3C MaxxTerra, EXO, TR, 60 TPI, foldable, 29" x 2.6"
Rear: Maxxis Rekon, 3C MaxxTerra, EXO, TR, 60 TPI, foldable, 29" x 2.6"
Saddle Syncros Tofino 2.0 Regular, CrMo rails
Seatpost Syncros Duncan 2.0 dropper, remote integrated with Scott TwinLoc lever
Drop: 100mm (SM), 125mm (MD), 150mm (LG/XL)
Seatpost Diameter 31.6mm
Seatpost Clamp Single bolt
Rear Dropout / Hub Dimensions 148x12mm Boost
Max. Tire Size 29" x 2.6" or 27.5" x 2.8"
Bottle Cage Mounts One inside front triangle
Colors Light Grey
Warranty 5 years frame
Weight 31 lb 4.9 oz (14,200 g)
Miscellaneous • VLK Virtual 4 Link rear suspension design
• Scott TwinLoc TSP system provides three suspension modes (Lockout, Traction Control, Descend) for shock and fork via handlebar-mounted remote
• Rear travel by mode: Lockout 0mm; Traction Control 100mm; Descend 150mm
• Internal cable routing
• Compatible with 27.5+ wheels (geometry adjustable via flip chip at upper shock mount)
Price $4,499.99
More Info scott-sports.com
