Specifications

Product Orange Stage Evo LE Bike
Model Year 2021
Riding Type Trail
Rider Unisex
Sizes and Geometry
S, M, L, XL View Geometry
Size S M L XL
Top Tube Length 595 615 635 655
Head Tube Angle 65° 65° 65° 65°
Head Tube Length 100 100 110 130
Seat Tube Angle 76° 76° 76° 76°
Seat Tube Length 15" 17" 18" 19"
Bottom Bracket Height 320 (-50 drop) 320 (-50 drop) 320 (-50 drop) 320 (-50 drop)
Chainstay Length 443 443 443 443
Wheelbase 1198 1218 1240 1262
Standover 690 709 736 762
Reach 440 460 478 496
Stack 620 620 630 638
* Additional Info Unless otherwise indicated, all measurements are in mm
Frame angles are measured static, without rider sag
Bottom bracket height from ground is with 740mm diameter tire
Wheel Size 29"
Frame Material Aluminum
Frame Material Details 6061-T6 monocoque UK formed custom aluminum tubing
Rear Travel 120mm
Rear Shock RockShox Super Deluxe Ultimate, 190mm x 45mm
Fork RockShox Pike Ultimate, 42mm offset
Fork Travel 130mm
Head Tube Diameter Tapered
Headset Hope Tech (silver), 49mm for tapered steerer
Handlebar Burgtec RideWide Enduro, 800mm width
Stem Burgtec MK3 Enduro (silver), 42.5mm length
Grips Orange Strange 130, single lock-on, 130mm length

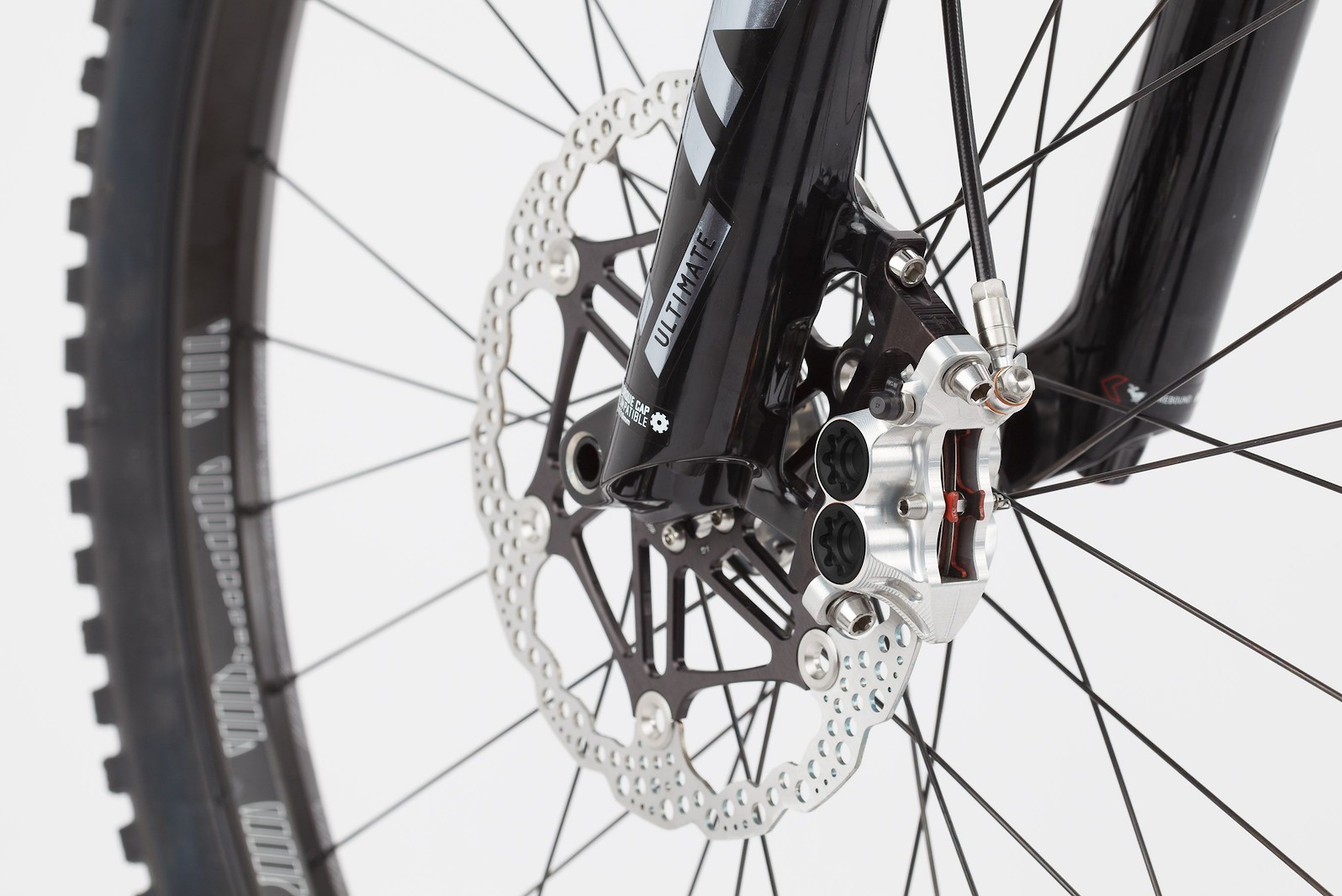

Brakes Hope Tech 3 E4 (silver/black), 203mm/180mm rotors
Brake Levers Hope Tech 3 E4 (silver/black)
Drivetrain 1x
Shifters Shimano XT 12-speed
Front Derailleur None
Rear Derailleur Shimano XT 12-speed
ISCG Tabs 73mm ISCG05
Chainguide None
Cranks Hope Tech (silver)
Chainrings Hope Tech 32 tooth (black)
Bottom Bracket Hope Tech, 30mm (silver)
Pedals None included
Chain Shimano XT 12-speed
Cassette Shimano XT 10-51 tooth 12-speed
Rims e*thirteen TRS, 30mm inner width
Hubs Hope Tech Pro 4 (silver)
Spokes
Tires Front: Maxxis Minion DHF 29"x2.5" WT
Rear: Maxxis Minion DHR II 29"x2.4" WT
Saddle SDG Radar, cromo rail
Seatpost SDG Tellis, 150mm travel
Seatpost Diameter 30.9mm
Seatpost Clamp 34.9mm, Hope Tech single bolt (silver)
Rear Dropout / Hub Dimensions 12mm x 148mm Boost, Allen key head bolt type
Max. Tire Size
Bottle Cage Mounts Yes
Colors Smoke white with black/orange decals
Warranty 5-year frame warranty with limited lifetime crash replacement
Weight N/A
Miscellaneous £5300 MSRP
Single-pivot suspension design
Revised progressive suspension frame curve
Geometry optimized for 130mm front/120mm rear travel
Internal dropper post routing
Price N/A
