2022 On-One Scandal SRAM GX Bike

Views:

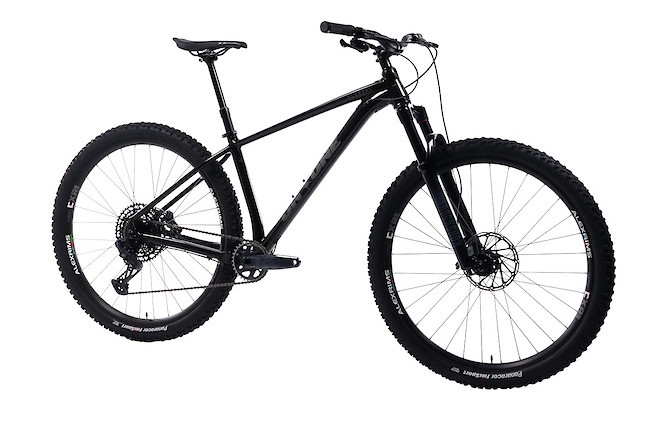

2022 On-One Scandal SRAM GX (Neon Midnight)
2022 On-One Scandal SRAM GX Bike 2022 On-One Scandal SRAM GX Bike 2022 On-One Scandal SRAM GX Bike 2022 On-One Scandal SRAM GX Bike 2022 On-One Scandal SRAM GX Bike 2022 On-One Scandal SRAM GX Bike 2022 On-One Scandal SRAM GX Bike 2022 On-One Scandal SRAM GX Bike 2022 On-One Scandal SRAM GX Bike
Create New Tag

Compare to other Bikes

Need more info? View our Cross Country Mountain Bikes or Trail Mountain Bikes buyer's guides.

Specifications

Product On-One Scandal SRAM GX Bike
Model Year 2022
Riding Type Cross Country, Trail
Rider Unisex
Sizes and Geometry
SM, MD, LG, XL View Geometry
Size SM MD LG XL
Top Tube Length 601mm 623mm 639mm 657mm
Head Tube Angle 65° 65° 65° 65°
Head Tube Length 100mm 100mm 120mm 135mm
Seat Tube Angle 73° 73° 73° 73°
Seat Tube Length 380mm 420mm 460mm 500mm
Bottom Bracket Height 58mm drop 58mm drop 58mm drop 58mm drop
Chainstay Length 435mm 435mm 435mm 435mm
Wheelbase 1158.0mm 1180.0mm 1212.0mm 1237.6mm
Standover 700mm 740mm 770mm 800mm
Reach 415mm 437mm 460mm 480mm
Stack 609mm 609mm 628mm 641mm
* Additional Info All specifications based on fork with 51mm offset
Wheel Size 29"
Frame Material Aluminum
Frame Material Details Triple-butted pressure-shaped heat-treated 6061-T6 alloy
Rear Travel Hardtail
Rear Shock None
Fork RockShox 35 Gold RL, DebonAir spring, Crown Adjust
Fork Travel 130mm
Head Tube Diameter Tapered, 1.125" top, 1.5" bottom
Headset Selcof Zero Stack, semi-integrated, cartridge bearings
Handlebar Selcof Enduro6 Riser, 780mm width
Stem Selcof Hot Box, 50mm length
Grips On-One Knurl
Brakes SRAM G2 R, 4-piston, Avid CenterLine 6-bolt rotors (180mm front, 160mm rear)
Brake Levers SRAM G2 R, Matchmaker MMX clamps
Drivetrain 1x
Shifters SRAM GX Eagle, 12-speed, Matchmaker MMX bracket
Front Derailleur None
Rear Derailleur SRAM GX Eagle, 12-speed
ISCG Tabs None
Chainguide None
Cranks SRAM GX Eagle DUB, 170mm length
Chainrings SRAM GX Eagle, 32 tooth
Bottom Bracket SRAM DUB, 73mm English/BSA threaded
Pedals None
Chain SRAM SX Eagle, 12-speed
Cassette SRAM SX Eagle PG-1210, 12-speed, 11-50 tooth
Rims Alexrims EXR30
Hubs Formula, 110x15mm Boost front, 148x12mm Boost rear with HG driver
Spokes
Tires Panaracer FireSport, wire bead, 29" x 2.35"
Saddle San Marco Monza Start Wide, carbon steel rails
Seatpost Selcof Twelfty, alloy; dropper upgrade available
Seatpost Diameter 30.9mm
Seatpost Clamp Selcof V3, forged alloy, single bolt, 35mm
Rear Dropout / Hub Dimensions 148x12mm Boost
Max. Tire Size 29" x 2.6"
Bottle Cage Mounts One inside front triangle
Colors Scorched Earth, Neon Midnight, Toxic Yellow
Warranty 2 years frame and On-One components
Weight 30 lb 3.3 oz (13,700 g)
Miscellaneous • Internal/external cable routing with internal dropper seatpost routing
• Weight given for size MD
• Frame weight: 2000g (size MD)
Price $1,379.99
More Info On-One Website
