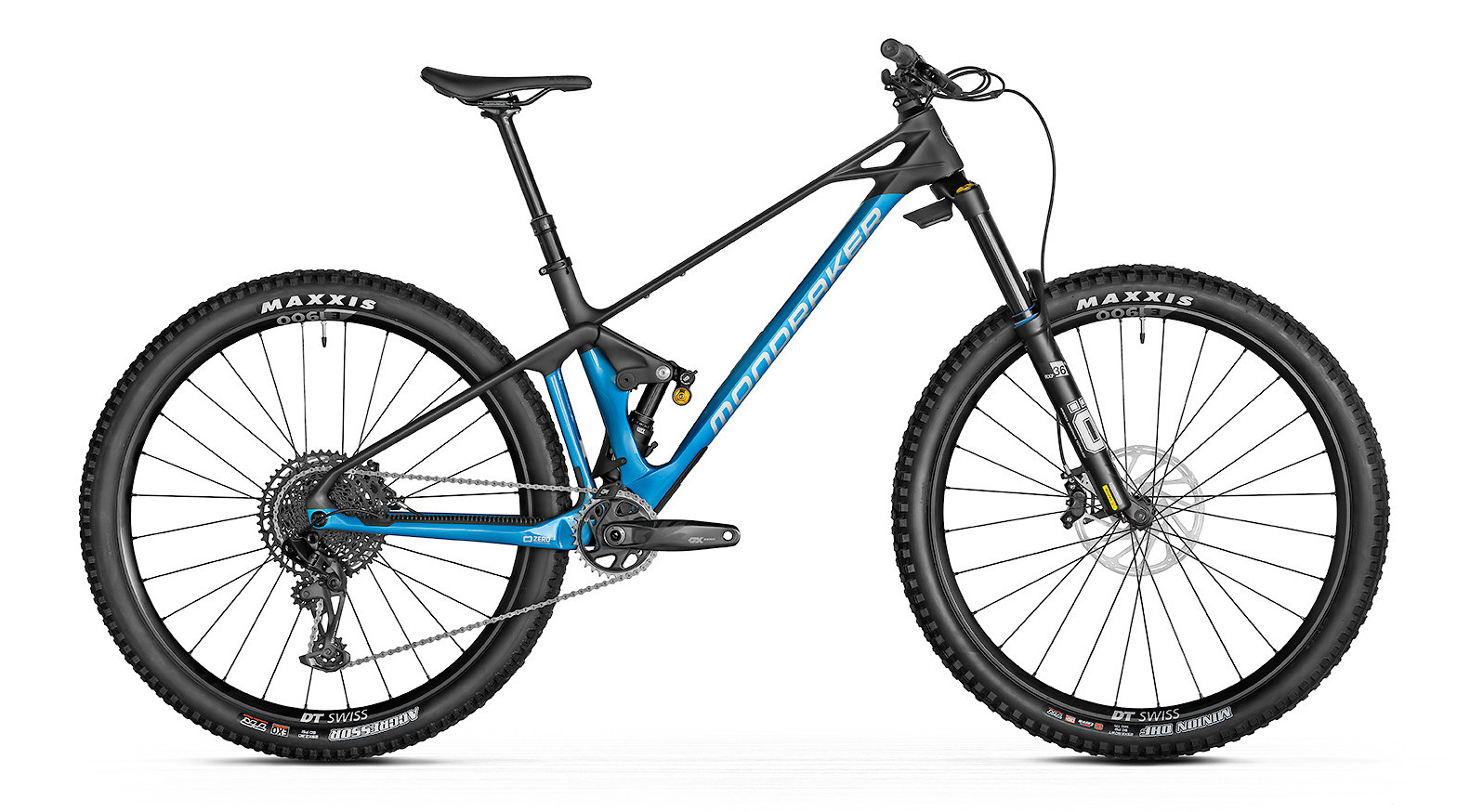

2022 Mondraker Foxy Carbon RR Bike

c70 photo 689381.jpg?VersionId=9TSJalquJOCBLM1Nw

c70 photo 276789.jpg?VersionId=kvyD0Y6RGBO8AhA1oQpfkcJqMTaHF

c70 photo 615663.jpg?VersionId=01L7qzvelYriG.S

s1600 photo 643582.jpg?VersionId=YMfYrYv3cI9wXccyzjJGgEAxeCBc

s1600 photo 176618.jpg?VersionId=j0wIbjJWaaEBC4z1Qt

Mondraker


Free shipping on orders over $50 (continental U.S. only). International shipping available. Some exclusions apply.	Free shipping on orders over $50 (continental U.S. only). International shipping available. Some exclusions apply. $5,999.00	Buy
Mondraker \| Foxy R Bike 2022 Deep Purple-Flame Red - M	Mondraker \| Foxy R Bike 2022 Deep Purple-Flame Red - M $5,999.00	Buy
Free shipping on orders over $50 (continental U.S. only). International shipping available. Some exclusions apply.	No match. Browse other Bikes
Free U.S. shipping on orders over $45. International shipping available. Some exclusions apply.	No match. Browse other Bikes

Specifications

Product

Mondraker Foxy Carbon RR Bike

Model Year

2022

Riding Type

Enduro / All-Mountain

Rider

Unisex

Sizes and Geometry

SM (standard, low)

MD (standard, low)

LG (standard, low)

XL (standard, low)

Size	SM (standard, low)	MD (standard, low)	LG (standard, low)	XL (standard, low)
Top Tube Length	600mm	620mm	650mm	670mm
Head Tube Angle	65.0°, 64.5°	65.0°, 64.5°	65.0°, 64.5°	65.0°, 64.5°
Head Tube Length	90mm	100mm	115mm	130mm
Seat Tube Angle	76.0°, 75.5°	76.0°, 75.5°	76.0°, 75.5°	76.0°, 75.5°
Seat Tube Length	375mm	415mm	445mm	500mm
Bottom Bracket Height	350mm (25mm drop), 345mm (30mm drop)	350mm (25mm drop), 345mm (30mm drop)	350mm (25mm drop), 345mm (30mm drop)	350mm (25mm drop), 345mm (30mm drop)
Chainstay Length	435mm, 445mm	435mm, 445mm	435mm, 445mm	435mm, 445mm
Wheelbase	1203mm, 1210mm	1227mm, 1233mm	1253mm, 1260mm	1279mm, 1286mm

Reach	450mm, 445mm	470mm, 465mm	490mm, 485mm	510mm, 505mm
Stack	615mm, 617mm	623mm, 627mm	637mm, 641mm	651mm, 656mm
Additional Info	Geometry adjustable via 2-position bolt in lower shock link; head tube angle can be further altered via optional Geometry Kit with +/-1° headset cups

Wheel Size

29"

Frame Material

Carbon Fiber

Frame Material Details

Stealth Air Carbon front and rear triangles, aluminum CSC upper link with carbon bridge, molded chainstay and down tube protection

Rear Travel

150mm

Rear Shock

Öhlins TTX Air, high-speed compression lever with climb mode, low-speed compression adjust, rebound adjust, trunnion mount, 205mm x 65mm

Fork

Öhlins RXF 36 M.2, TTX18 Twin Tube cartridge damper, ramp chamber, high-speed compression lever with climb mode, low-speed compression adjust, rebound adjust, 44mm offset

Fork Travel

160mm

Head Tube Diameter

Straight, 1.5"

Headset

ACROS custom, angular contact bearings, internal cable routing

Handlebar

ONOFF Sulfur Carbon 1.0, 780mm width, 25mm rise, 9° backsweep, 5° upsweep, 31.8mm clamp diameter

Stem

ONOFF Sulfur FG, 6061 forged alloy, 30mm length, 31.8mm bar clamp

Grips

ONOFF Diamond, 135mm length, single lock-on

Brakes

SRAM G2 RS, 4-piston, steel-backed organic pads, SRAM CenterLine 6-bolt one-piece rotors (200mm front/180mm rear)

Brake Levers

SRAM G2 RS, SwingLink, tool-free reach adjust

Drivetrain

Shifters

SRAM GX Eagle, 12-speed, X-ACTUATION

Front Derailleur

None

Rear Derailleur

SRAM GX Eagle, 12-speed, Type 3 roller bearing clutch, cage lock, X-ACTUATION

ISCG Tabs

ISCG05

Chainguide

Upper slider

Cranks

SRAM GX Eagle DUB
Length: 170mm (SM/MD), 175mm (LG/XL)

Chainrings

SRAM GX Eagle, 32 tooth, CNC-machined alloy, X-SYNC 2, direct mount

Bottom Bracket

SRAM DUB, sealed bearings, 73mm English/BSA threaded

Pedals

None

Chain

SRAM NX Eagle, 12-speed, with PowerLock

Cassette

SRAM GX Eagle XG-1275, 12-speed, 10-52 tooth

Rims

DT Swiss EX1700 Spline, 30mm internal width, welded aluminum, tubeless ready, 28 hole

Hubs

DT Swiss 350, 110x15mm Boost front, 148x12mm Boost rear with 36 tooth SL Ratchet freehub and XD driver

Spokes

DT Swiss Competition, straightpull

Tires

Front: Maxxis Minion DHF, 3C MaxxTerra, EXO+, TR, 120 TPI, folding bead, 29" x 2.5" WT
Rear: Maxxis Minion DHR II, 3C MaxxTerra, EXO+, TR, 120 TPI, folding bead, 29" x 2.4" WT

Saddle

SDG Bel-Air 3.0, LPU foam, steel rails

Seatpost

ONOFF Pija dropper
Drop: 125mm (SM), 150mm (MD), 170mm (LG/XL)

Seatpost Diameter

31.6mm

Seatpost Clamp

Single bolt

Rear Dropout / Hub Dimensions

148x12mm Boost

Max. Tire Size

Bottle Cage Mounts

One inside front triangle (with Fidlock pocket), plus accessory mounts under top tube

Colors

Blue/Black

Warranty

Lifetime frame with registration

Weight

29 lb 8.7 oz (13,400 g)

Miscellaneous

• Zero Suspension System
• Mondraker Forward Geometry
• Geometry adjustable via 2-position bolt in lower shock link; head tube angle can be further altered via optional Geometry Kit with +/-1° headset cups
• HHG (Hidden Housing Guide) internal cable routing
• Enduro MAX sealed pivot bearings
• SRAM UDH (Universal Derailleur Hanger)
• Includes integrated rear shock mudguard
• UK price: 6299 GBP
• Includes Mondraker MIND integrated telemetry system: sensor units in head tube and rocker pivot capture suspension activity data for analysis with myMondraker smartphone app; system can also be used to help set suspension sag and track rides via GPS
