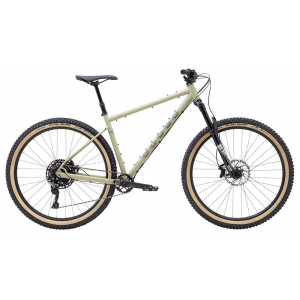

2022 Marin Pine Mountain 2 Bike

Views:
2022 Marin Pine Mountain 2
2022 Marin Pine Mountain 2 Bike 2022 Marin Pine Mountain 2 Bike
Create New Tag

Compare to other Bikes

Specifications

Product Marin Pine Mountain 2 Bike
Model Year 2022
Riding Type Cross Country, Trail, Other (Bikepacking)
Rider Unisex
Sizes and Geometry
SM, MD, LG, XL View Geometry
Size SM MD LG XL
Top Tube Length 572mm 593mm 619.3mm 651.6mm
Head Tube Angle 66.5° 66.5° 66.5° 66.5°
Head Tube Length 95mm 100mm 105mm 115mm
Seat Tube Angle 74.5° 74.5° 74.5° 74.5°
Seat Tube Length 381mm 431mm 482mm 520mm
Bottom Bracket Height 315mm (60mm drop) 315mm (60mm drop) 315mm (60mm drop) 315mm (60mm drop)
Chainstay Length 430mm 430mm 430mm 430mm
Wheelbase 1137.5mm 1159.5mm 1186.5mm 1220.5mm
Standover 694mm 740mm 784mm 817mm
Reach 410mm 430mm 455mm 485mm
Stack 626mm 630.6mm 635.2mm 644mm
Wheel Size 29"
Frame Material Chromoly
Frame Material Details Series 3 4130 double-butted and heat-treated CrMo, custom cast dropouts
Rear Travel Hardtail
Rear Shock None
Fork RockShox FS 35, DebonAir spring, 44mm offset, Maxle Light axle
Fork Travel 120mm
Head Tube Diameter Straight, 1.125"
Headset FSA Orbit ITA, sealed cartridge bearings
Handlebar Marin Bedroll, 780mm width, 50mm rise, 10° backsweep, 6° upsweep; with straight top bar for mounting handlebar packs away from cables and controls, and/or mounting lights, phones, cycle computers, etc.
Stem Marin 3D forged alloy, 35mm length
Grips Marin BearPaw, lock-on
Brakes Front: Shimano MT520, 4-piston, 180mm CENTER LOCK rotor
Rear: Shimano MT500, 2-piston, 160mm CENTER LOCK rotor
Brake Levers Shimano MT500
Drivetrain 1x
Shifters Shimano SLX M7100, 12-speed
Front Derailleur None
Rear Derailleur Shimano SLX M7100, 12-speed
ISCG Tabs None
Chainguide None
Cranks FSA GRID, modular 1x
Length: 170mm (SM), 175mm (MD/LG/XL)
Chainrings FSA GRID, 32 tooth, direct mount, MegaTooth Technology
Bottom Bracket FSA, outboard cartridge bearings, 73mm English/BSA threaded
Pedals Nylon platform
Chain KMC X-12, 12-speed
Cassette Shimano SLX M7100, 12-speed, 10-51 tooth
Rims Alloy double wall, offset spokes, 32mm inner width, tubeless compatible, 32 hole
Hubs Front: forged alloy, sealed cartridge bearings, 110x15mm Boost
Rear: Shimano, 148x12mm Boost, MICRO SPLINE driver
Spokes 14g stainless steel
Tires VEE Tire Co. Flow Snap, folding bead, tubeless ready, 29" x 2.6"
Saddle Marin Pine Mountain Trail
Seatpost TranzX YSP23 dropper, 1x remote lever
Drop: 150mm (SM), 170mm (MD/LG/XL)
Seatpost Diameter 30.9mm
Seatpost Clamp Single bolt
Rear Dropout / Hub Dimensions 148x12mm Boost
Max. Tire Size
Bottle Cage Mounts Multiple bottle cage and accessory mounts
Colors Gloss Sage Green/Teal/Orange/Brown
Warranty Lifetime frame; 1 year components, paint and decals
Weight
Miscellaneous • External cable routing with internal dropper seatpost routing
• Full fender and rack mounts
Price $2,499
More Info marinbikes.com
