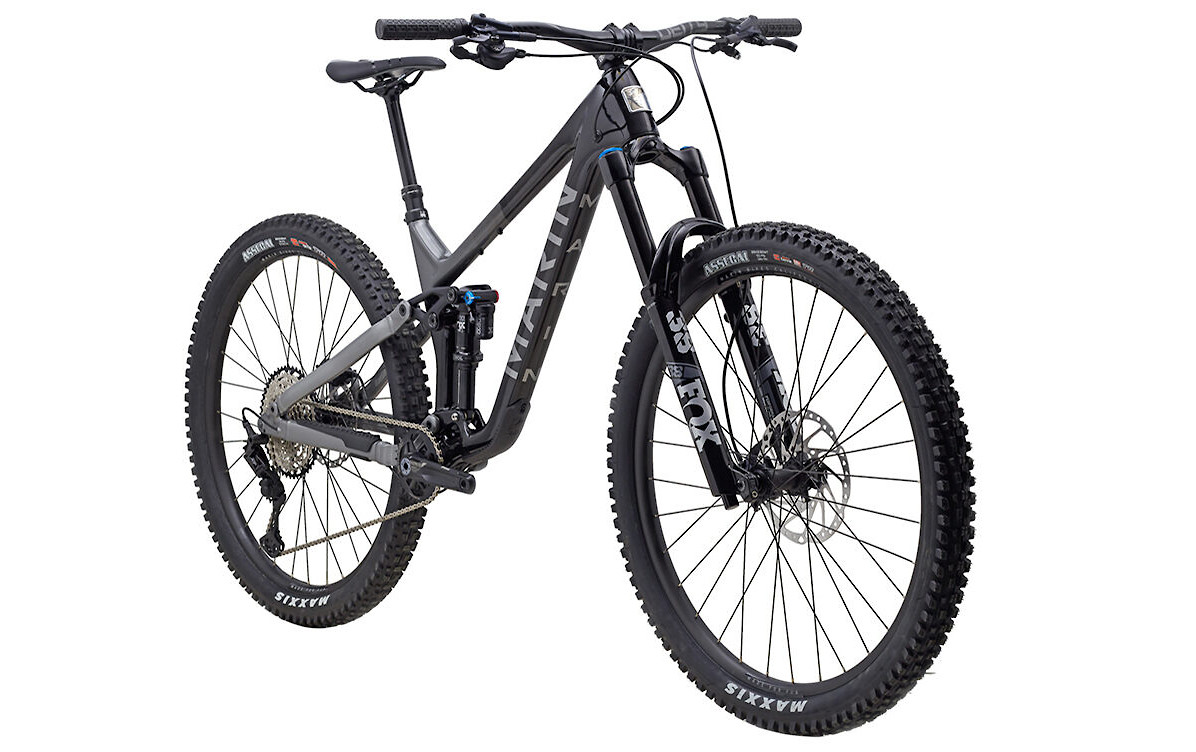

2022 Marin Alpine Trail Carbon 2 Bike

Views:
2022 Marin Alpine Trail Carbon 2
2022 Marin Alpine Trail Carbon 2 Bike 2022 Marin Alpine Trail Carbon 2 Bike 2022 Marin Alpine Trail Carbon 2 Bike
Create New Tag

Compare to other Bikes

Need more info? View our Enduro / All-Mountain Mountain Bikes buyer's guide.

Specifications

Product Marin Alpine Trail Carbon 2 Bike
Model Year 2022
Riding Type Enduro / All-Mountain
Rider Unisex
Sizes and Geometry
SM, MD, LG, XL View Geometry
Size SM MD LG XL
Top Tube Length 561.7mm 589.0mm 615.0mm 652.0mm
Head Tube Angle 63.5° 63.5° 63.5° 63.5°
Head Tube Length 100mm 110mm 115mm 130mm
Seat Tube Angle 78° 78° 78° 78°
Seat Tube Length 390mm 400mm 425mm 430mm
Bottom Bracket Height 342mm (35mm drop) 342mm (35mm drop) 342mm (35mm drop) 342mm (35mm drop)
Chainstay Length 430mm 430mm 430mm 430mm
Wheelbase 1199mm 1229mm 1256mm 1297mm
Standover 690mm 694mm 695mm 698mm
Reach 430mm 455mm 480mm 515mm
Stack 619mm 628mm 632mm 643mm
Wheel Size 29"
Frame Material Carbon Fiber
Frame Material Details Unidirectional high-modulus monocoque carbon front triangle, Series 4 alloy rear triangle, one-piece forged rocker, molded chainstay and down tube protection
Rear Travel 150mm
Rear Shock FOX FLOAT DPX2 Performance, EVOL, 3-position compression adjust, rebound adjust, trunnion mount, 205mm x 65mm
Fork FOX FLOAT 38 Performance Elite, 44mm offset, integrated FOX fender, Kabolt axle
Fork Travel 160mm
Head Tube Diameter Tapered, 1.125" top, 1.5" bottom
Headset FSA No.57, sealed cartridge bearings
Handlebar Race Face Aeffect R, 780mm width, 20mm rise, 5° upsweep, 8° backsweep, 35mm clamp diameter
Stem Race Face Aeffect R, 50mm length, 35mm bar clamp
Grips Marin, single clamp lock-on
Brakes Shimano SLX M7120, 4-piston, CENTER LOCK rotors (203mm front, 180mm rear)
Brake Levers Shimano SLX M7120, I-SPEC EV clamps
Drivetrain 1x
Shifters Shimano SLX M7100, 12-speed, I-SPEC EV bracket
Front Derailleur None
Rear Derailleur Shimano Deore XT M8100, 12-speed, SGS cage
ISCG Tabs ISCG05
Chainguide None
Cranks FSA Gradient, modular 1x, MegoEXO spindle, 170mm length
Chainrings FSA Gradient, 32 tooth, direct mount, MegaTooth Technology
Bottom Bracket FSA MegaEVO, 73mm English/BSA threaded
Pedals None
Chain KMC X-12, 12-speed
Cassette Shimano SLX M7100, 12-speed, 10-51 tooth
Rims Marin, double wall alloy, 29mm inner width, welded joint, tubeless compatible, 32 hole
Hubs Shimano, MT410B 110x15mm Boost front, MT510B 148x12mm Boost rear with MICRO SPLINE driver
Spokes 14g stainless steel
Tires Front: Maxxis Assegai, 3C MaxxTerra, EXO+, TR, 29" x 2.5"
Rear: Maxxis Assegai, 3C MaxxGrip, Double Down (DD), TR, 29" x 2.5"
Saddle Marin Trail Speed Concept Pro
Seatpost X-Fusion Manic dropper, Shimano MT500 1x I-SPEC EV remote lever
Drop: 125mm (SM), 150mm (MD/LG), 170mm (XL)
Seatpost Diameter 30.9mm
Seatpost Clamp Single bolt
Rear Dropout / Hub Dimensions 148x12mm Boost
Max. Tire Size
Bottle Cage Mounts One inside front triangle, plus accessory mounts under top tube
Colors Gloss Black/Silver
Warranty 5 years frame; 1 year components, paint and decals
Weight N/A
Miscellaneous • MultiTrac single pivot rear suspension design
• Internal cable routing
Price $4,499
