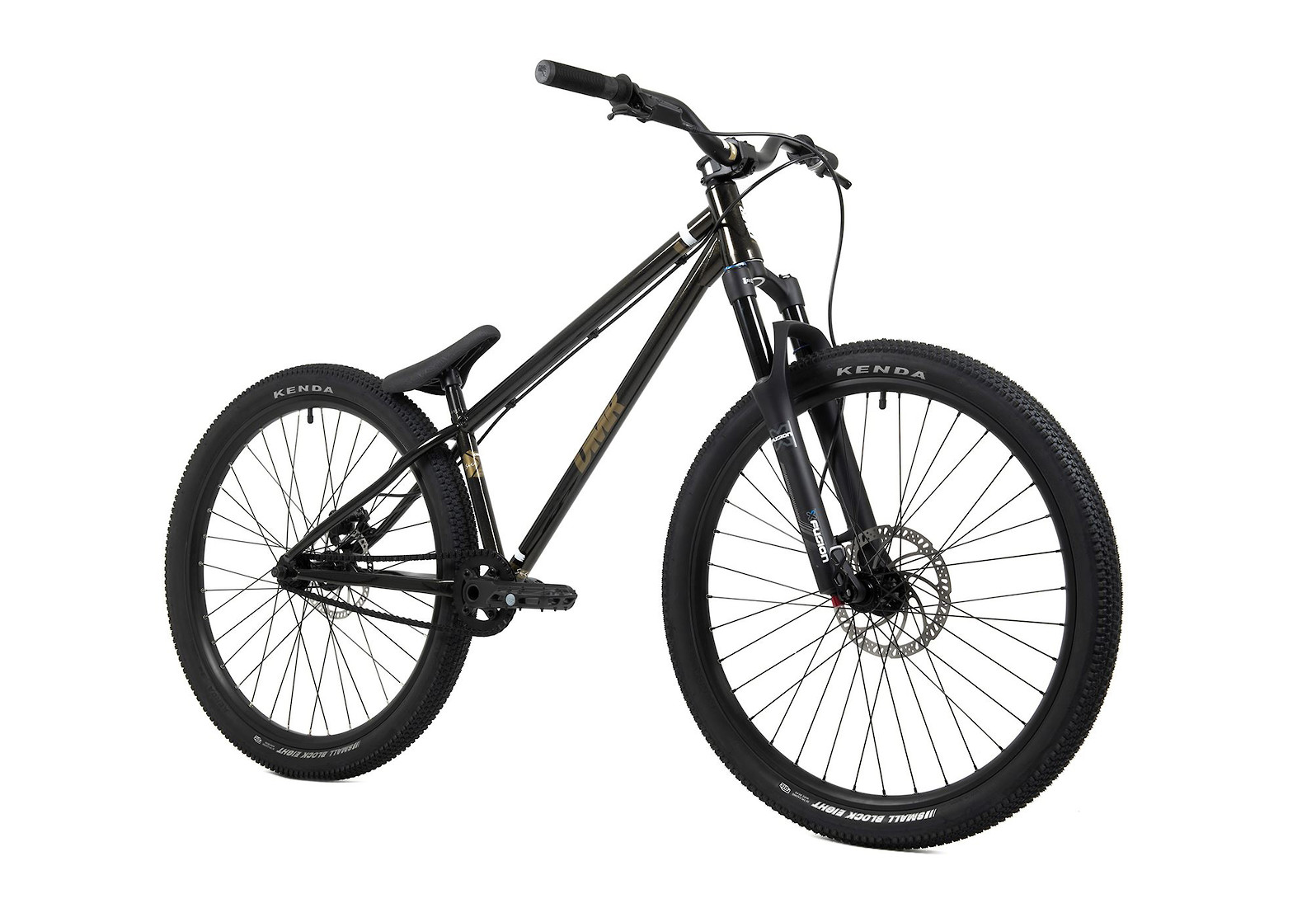

2020 DMR Sect Pro Bike

Views:
2020 DMR Sect Pro
2020 DMR Sect Pro Bike 2020 DMR Sect Pro Bike
Create New Tag

Compare to other Bikes

Need more info? View our Dirt Jump / Slopestyle Mountain Bikes buyer's guide.

Specifications

Product DMR Sect Pro Bike
Model Year 2020
Riding Type Dirt Jump / Slopestyle
Rider Unisex
Sizes and Geometry
One Size View Geometry
Size One Size
Top Tube Length 570mm
Head Tube Angle 69°
Head Tube Length 115mm
Seat Tube Angle 71°
Seat Tube Length 330mm
Bottom Bracket Height 25mm drop
Chainstay Length 390mm
Wheelbase 1041mm
Standover
Reach 420mm
Stack 570mm
Wheel Size 26"
Frame Material Chromoly
Frame Material Details 4130 chromoly, hydroformed chainstay yokes
Rear Travel Hardtail
Rear Shock N/A
Fork X-Fusion Slant RC, air spring, 15mm thru-axle
Fork Travel 100mm
Head Tube Diameter Tapered, 1.125" top, 1.5" bottom
Headset FSA Orbit C, cartridge bearings
Handlebar DMR, aluminium, 31.8mm clamp diameter, 740mm width, 1.5" rise
Stem DMR, 3D forged alloy, 40mm length
Grips DMR Sect
Brakes Tektro M275, 20-piston hydraulic, 160mm rotors
Brake Levers Tektro M275
Drivetrain 1x
Shifters N/A
Front Derailleur N/A
Rear Derailleur N/A
ISCG Tabs No
Chainguide N/A
Cranks 2-piece, 170mm length
Chainrings 32 tooth
Bottom Bracket 24mm axle
Pedals DMR V6
Chain YBN MK918, half link, black
Cassette 13 tooth single cog
Rims Double wall
Hubs KT DJ, 5-pawl freehub
Spokes
Tires Kenda Small Block 8, 26" x 2.1"
Saddle DMR Sect saddle/seatpost combo
Seatpost DMR Sect saddle/seatpost combo
Seatpost Diameter 27.2mm
Seatpost Clamp Integrated
Rear Dropout / Hub Dimensions
Max. Tire Size
Bottle Cage Mounts No
Colors Black
Warranty
Weight 26 lb 7.3 oz (12,000 g)
Miscellaneous UK price: 1150 GBP
External cable routing
Price
More Info dmrbikes.com
