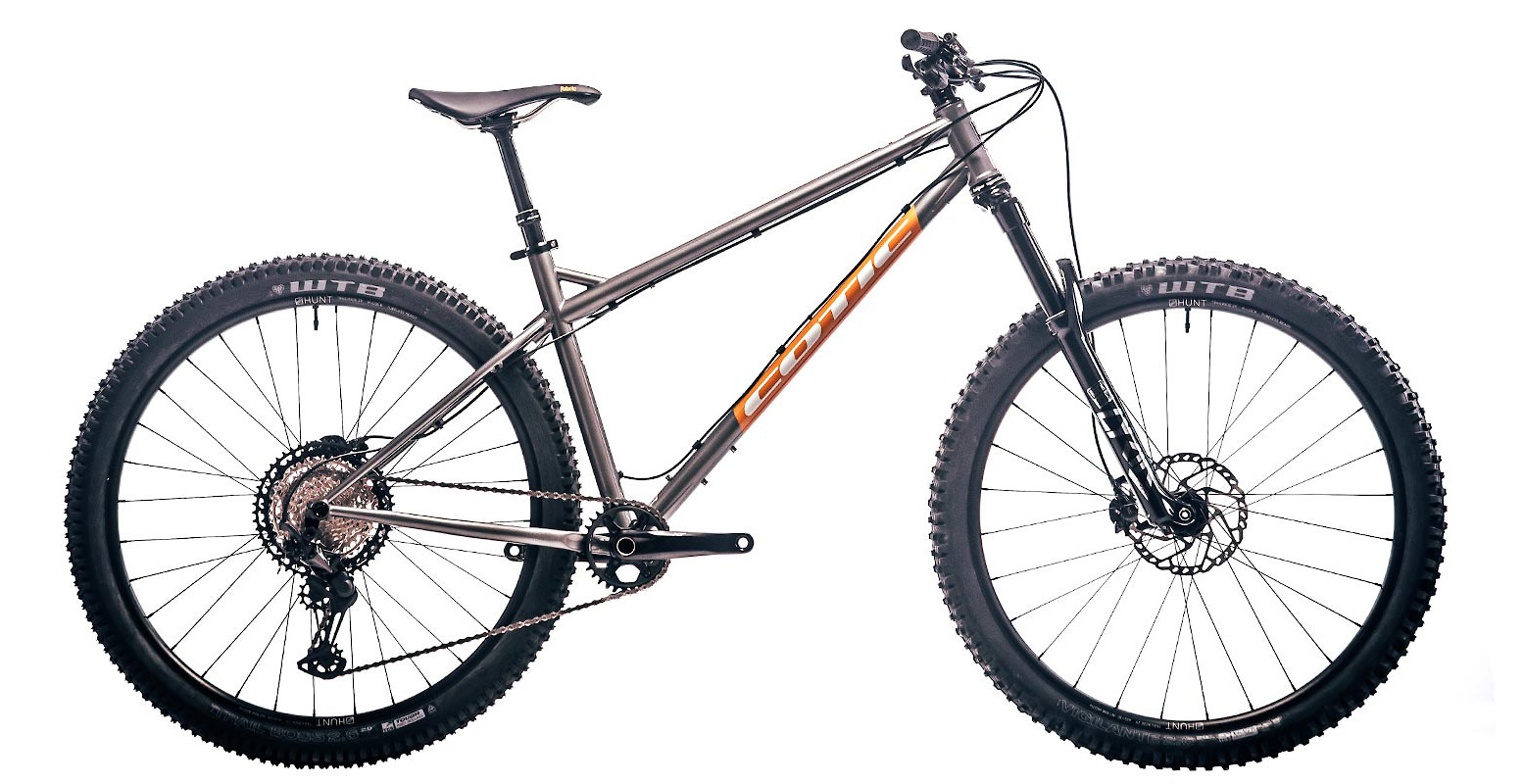

2021 Cotic BFeMAX Bronze Deore 1x12 Bike

Views:
2021 Cotic BFeMAX (Sunny Yellow; custom build shown)
2021 Cotic BFeMAX Bronze Deore 1x12 Bike 2021 Cotic BFeMAX Bronze Deore 1x12 Bike 2021 Cotic BFeMAX Bronze Deore 1x12 Bike 2021 Cotic BFeMAX Bronze Deore 1x12 Bike
Create New Tag

Compare to other Bikes

Need more info? View our Trail Mountain Bikes or Enduro / All-Mountain Mountain Bikes buyer's guides.

Specifications

Product Cotic BFeMAX Bronze Deore 1x12 Bike
Model Year 2021
Riding Type Trail, Enduro / All-Mountain
Rider Unisex
Sizes and Geometry
SM, MD, LG, XL View Geometry
Size SM MD LG XL
Top Tube Length 608.1mm 633.6mm 660.1mm 687.6mm
Head Tube Angle 65° 65° 65° 65°
Head Tube Length 100mm 110mm 120mm 130mm
Seat Tube Angle 74.5° 74.5° 74.5° 74.5°
Seat Tube Length 390mm 425mm 460mm 495mm
Bottom Bracket Height 60mm drop 60mm drop 60mm drop 60mm drop
Chainstay Length 444mm 444mm 444mm 444mm
Wheelbase 1186.7mm 1213.9mm 1242.2mm 1271.0mm
Standover
Reach 438mm 461mm 485mm 510mm
Stack 613.3mm 622.4mm 631.5mm 640.5mm
* Additional Info All specifications listed are with 140mm travel fork; see Cotic website for geometry with 120mm and 160mm forks.
Wheel Size 29"
Frame Material Chromoly
Frame Material Details Cotic Fm heat-treated CrMo, reinforced Reynolds 853 down tube, Ovalform top tube, Cotic Hexten chainstay gussets
Rear Travel Hardtail
Rear Shock None
Fork RockShox Revelation RC
Fork Travel 140mm
Head Tube Diameter Straight, 44mm
Headset Cane Creek 40 series, ZS44/EC44
Handlebar Cotic Calver, 780mm width, 25mm rise, 5° upsweep, 9° backsweep
Stem Cotic SHORTERSTEM, 35mm
Grips Cotic, lock-on
Brakes Shimano Deore M6100, 2-piston, Shimano 180mm CENTER LOCK rotors
Brake Levers Shimano Deore M6100
Drivetrain 1x
Shifters Shimano Deore M6100, 12-speed
Front Derailleur None
Rear Derailleur Shimano Deore M6100, 12-speed
ISCG Tabs ISCG05
Chainguide None
Cranks Shimano Deore M6100
Chainrings Shimano Deore M6100, 32 tooth
Bottom Bracket Shimano Deore BB52, 73mm English/BSA threaded
Pedals None
Chain Shimano Deore M6100, 12-speed
Cassette Shimano Deore M6100, 12-speed, 10-51 tooth
Rims Shimano MT620 wheelset
Hubs Shimano MT620 wheelset, 110x15mm Boost front, 148x12mm Boost rear with MICRO SPLINE driver
Spokes Shimano MT620 wheelset
Tires Wolfpack Enduro, 29" x 2.4"
Saddle Cotic
Seatpost
Seatpost Diameter 31.6mm
Seatpost Clamp 34.9mm
Rear Dropout / Hub Dimensions 148x12mm Boost
Max. Tire Size 29" x 2.6"
Bottle Cage Mounts Two inside front triangle plus one under down tube
Colors Gunmetal and Copper, Sunny Yellow
Warranty 5 years frame
Weight
Miscellaneous • Longshot geometry
• External cable routing with internal dropper post routing
• Frame weight: 6.1lbs (LG, with axle)
• UK price: 2339 GBP
