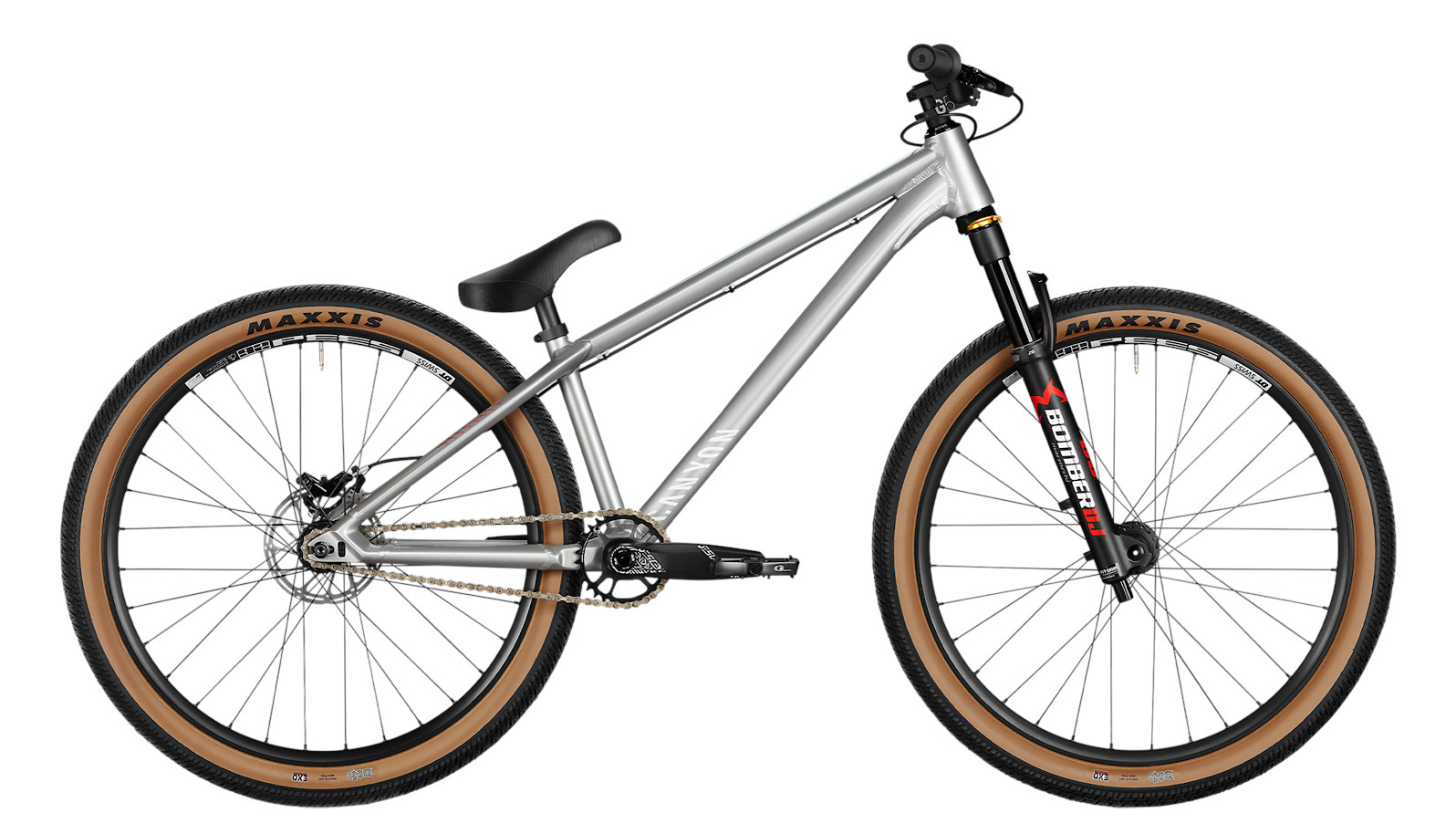

2022 Canyon Stitched 360 Pro Bike

s1600 photo 145371.jpg?VersionId=.fTF9Vd

Where To Buy
	Free shipping on orders over $50 (continental U.S. only). International shipping available. Some exclusions apply.	No match. Browse other Bikes
	Free shipping on orders over $50 (continental U.S. only). International shipping available. Some exclusions apply.	No match. Browse other Bikes

Specifications

Product

Canyon Stitched 360 Pro Bike

Model Year

2022

Riding Type

Dirt Jump / Slopestyle

Rider

Unisex

Sizes and Geometry

Size	SM	LG
Top Tube Length	583mm	600mm
Head Tube Angle	68.5°	68.5°
Head Tube Length	110mm	110mm
Seat Tube Angle	71.7°	71.7°
Seat Tube Length	310mm	310mm
Bottom Bracket Height	20mm drop	20mm drop
Chainstay Length	382mm	382mm
Wheelbase	1038mm	1055mm

Reach	400mm	417mm
Stack	555mm	555mm

Wheel Size

26"

Frame Material

Aluminum

Frame Material Details

Rear Travel

Hardtail

Rear Shock

None

Fork

Marzocchi Bomber DJ, GRIP damper, 37mm offset

Fork Travel

100mm

Head Tube Diameter

Tapered, 1.125" top, 1.5" bottom

Headset

Handlebar

Canyon G5 Riser, 780mm width, 30mm rise, 31.8mm clamp diameter

Stem

Canyon G5, 40mm length, 31.8mm bar clamp

Grips

Canyon Stitched

Brakes

SRAM Guide T, 4-piston, Avid G2 160mm 6-bolt rotor (rear only)

Brake Levers

SRAM Guide T (rear only)

Drivetrain

Shifters

None

Front Derailleur

None

Rear Derailleur

None

ISCG Tabs

None

Chainguide

None

Cranks

Truvativ Descendant 6K DUB, 165mm length

Chainrings

Truvativ Descendant 6K, 30 tooth

Bottom Bracket

SRAM DUB, sealed cartridge bearings, English/BSA threaded

Pedals

None

Chain

KMC Z510HX, singlespeed

Cassette

Single cog

Rims

DT Swiss 533D, aluminum, 22mm inner width

Hubs

Canyon Stitched, industrial bearings, 20x110mm Boost front, 10x135mm rear

Spokes

Tires

Maxxis DTH, 26" x 2.3"

Saddle

Canyon Stitched

Seatpost

Canyon Stitched, 260mm length

Seatpost Diameter

27.2mm

Seatpost Clamp

Single bolt

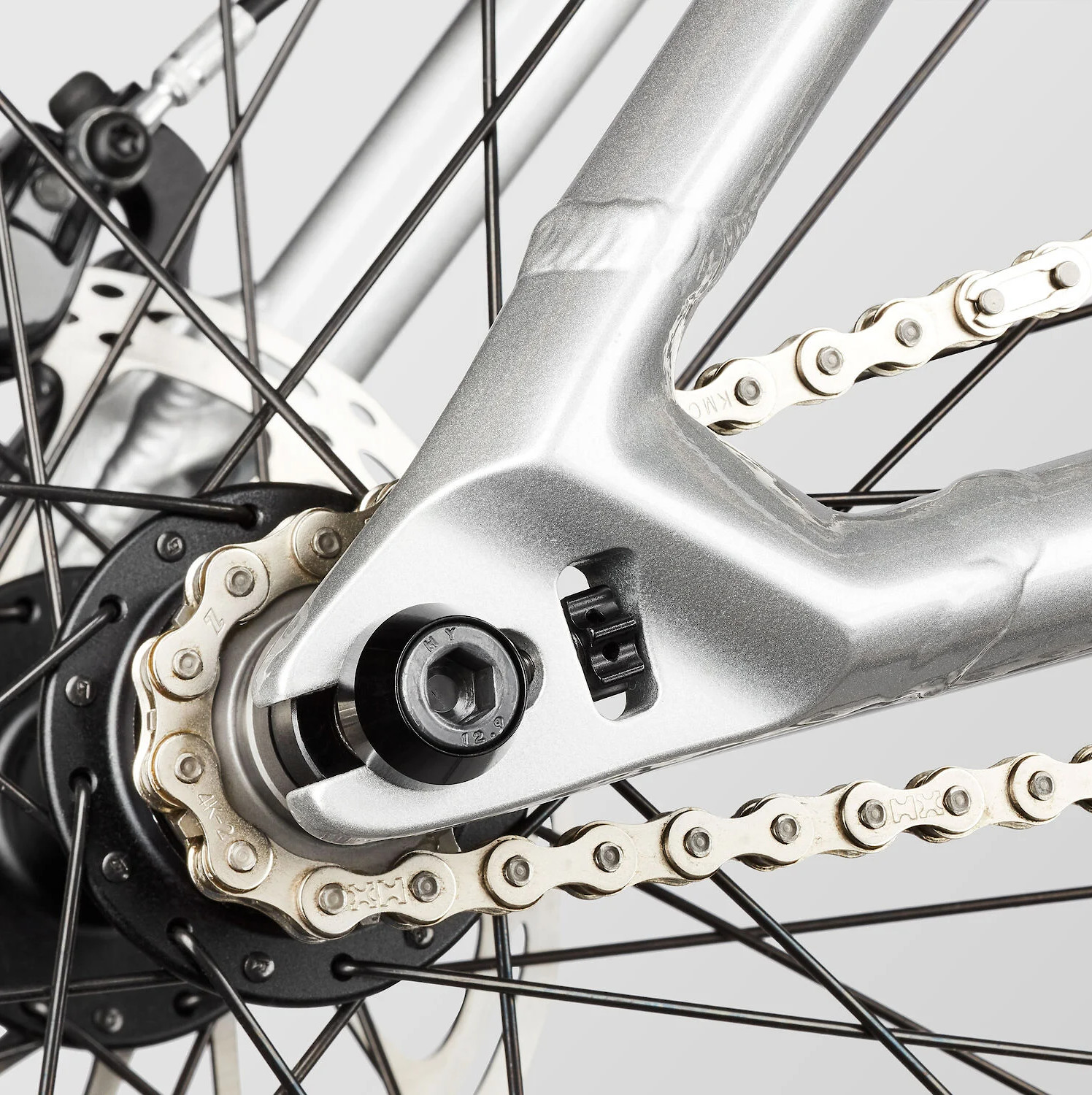

Rear Dropout / Hub Dimensions

10x135mm, horizontal sliding, integrated chain tensioners

Max. Tire Size

Bottle Cage Mounts

None

Colors

G Force

Warranty

6 years on frame and all Canyon components

Weight

25 lb 7.4 oz (11,550 g)

Miscellaneous

• External cable routing
• Includes tool case, torque wrench set, shock pump, and assembly paste
• UK price: 1499 GBP

Price
