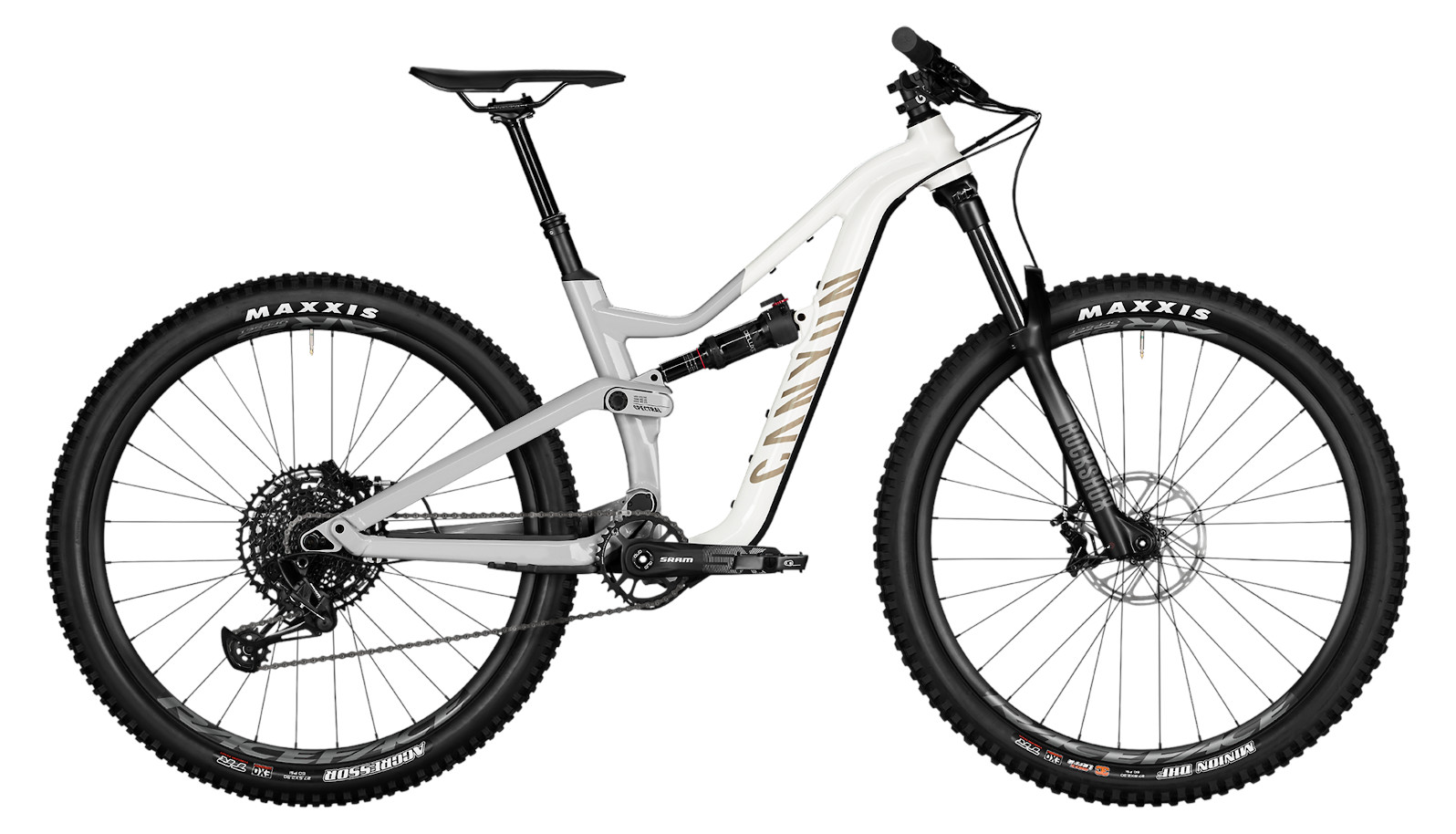

2022 Canyon Spectral Young Hero Bike

Views:
Create New Tag

Compare to other Bikes

Need more info? View our Trail Mountain Bikes buyer's guide.

Specifications

Product Canyon Spectral Young Hero Bike
Model Year 2022
Riding Type Trail
Rider Unisex, Kids
Sizes and Geometry
Size 2XS
Top Tube Length 538mm
Head Tube Angle 66°
Head Tube Length 88mm
Seat Tube Angle 74°
Seat Tube Length 385mm
Bottom Bracket Height 23mm drop
Chainstay Length 430mm
Wheelbase 1094mm
Standover 687mm
Reach 373mm
Stack 574mm
* Additional Info Intended for riders roughly 148-158cm tall
Wheel Size 27.5" (650b)
Frame Material Aluminum
Frame Material Details Molded chainstay and down tube protection
Rear Travel 140mm
Rear Shock RockShox Deluxe Select+, 2-position compression adjust lever, 210mm x 50mm
Fork RockShox Recon Silver RL, low-speed compression adjust, rebound adjust, 32mm stanchions
Fork Travel 140mm
Head Tube Diameter Tapered, 1.125" top, 1.5" bottom
Headset
Handlebar Canyon H15 Riser, 740mm width, 15mm rise
Stem Canyon G5, 40mm length
Grips Canyon G5
Brakes SRAM Guide T, 4-piston, SRAM CenterLine 180mm rotors
Brake Levers SRAM Guide T
Drivetrain 1x
Shifters SRAM SX Eagle, 12-speed
Front Derailleur None
Rear Derailleur SRAM SX Eagle, 12-speed
ISCG Tabs None
Chainguide None
Cranks SRAM SX Eagle DUB, 165mm length
Chainrings SRAM SX Eagle, 30 tooth
Bottom Bracket SRAM DUB, PressFit
Pedals None
Chain SRAM SX Eagle, 12-speed
Cassette SRAM SX Eagle PG-1210, 12-speed, 11-50 tooth
Rims Race Face AR25
Hubs Shimano MT400, 15x110mm Boost front, 12x148mm Boost rear with HG driver
Spokes
Tires Front: Maxxis Minion DHF, 27.5" x 2.3"
Rear: Maxxis Aggressor, 27.5" x 2.3"
Saddle Canyon Sport EP1249
Seatpost Canyon Iridium dropper, 125mm drop
Seatpost Diameter 30.9mm
Seatpost Clamp Single bolt
Rear Dropout / Hub Dimensions 12x148mm Boost
Max. Tire Size
Bottle Cage Mounts One inside front triangle, plus accessory mounts under top tube and on down tube
Colors Shockwave
Warranty 6 years frame and Canyon components
Weight 32 lb 6.5 oz (14,700 g)
Miscellaneous • Triple Phase Suspension system
• Intended for riders roughly 148-158cm tall
• External cable routing, via plastic channel under down tube
• Includes tool case, torque wrench set, shock pump, and assembly paste
• UK price: 1949 GBP
Price $2,299
More Info canyon.com
